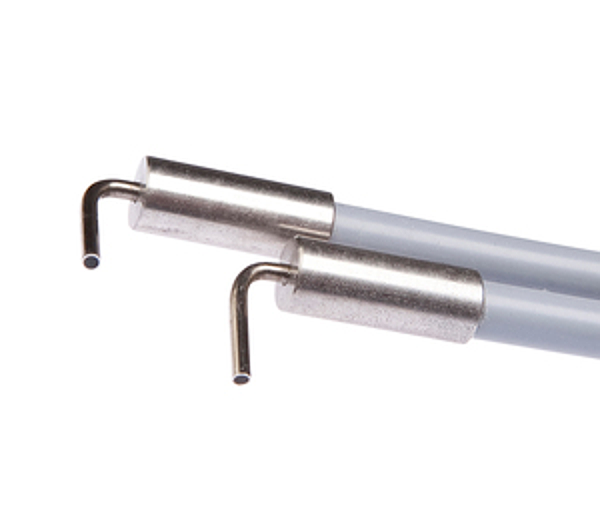

Article image LS030102

IPF LS030102

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

Technical parameters

Version: Through-beam sensors
Fiber diameter: 1mm
Number of fibers: 2
Fiber optics core material: Glass
Sheathing material: Silicone
Sensing head diameter: 1.5mm
End piece diameter: 20mm
End piece thread pitch: 1mm
Fiber optic with small bending radius: no
Bending radius (fixed): 15mm
Sensing head diameter 2: 6
End piece material: Brass
Overall length: 300mm
Design: Cylinder plain
Ambient temperature: -40 - 180°C
Degree of protection (IP): IP67
End piece length: 28mm
Metric thread size of end piece: 18mm
Bendable: no
Fiber optic with bendable head: no
Bending radius (flexible): 30mm
Fiber optic cable diameter, transmitter end: 4.2
Sensing head diameter 1: 1.5
Sensing head material: Stainless steel
Short-circuit protection: no
Reverse polarity protection: no
Bending angle of the sensing head: 90°
Bending section of the sensing head: 0mm
Max. switching distance: 150mm
Sensing head length: 10mm
Light exit: Axial
Range: 150mm
Fiber optic with linear light beam: no
Fiber optic for attachment optics: no
Fiber optic with coaxial structure: no
eClass 7.0: 27270905
eClass 7.1: 27270905
eClass 8.0: 27270905
eClass 9.0: 27270905
eClass 9.1: 27270905
ETIM-6.0: EC002651
ETIM-7.0: EC002651
IPF Product Group: 150
shipping weight: 0.08kg
packaging dimensions: 77.0mm x 25.0mm x 123.0mm
customs tariff number: 90011090
Verpackungsmaße: 77.0mm x 25.0mm x 123.0mm
Zolltarifnummer: 90011090
