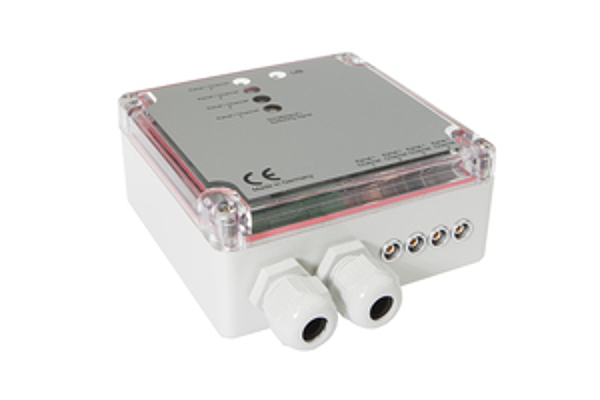

KVKB0450
Sensor kap,hochtemp,verst 120x120x60 18-36V DC,4x400mA,Klemmen,für M5-M12
Capacitive proximity switches are contact-free sensors. They detect metallic and non-metallic objects, regardless of whether they move or not. The achievable sensing range of the devices depends on the object material, its dimensions and the response sensitivity, which is set via a potentiometer. The vibration-resistant sensors can be approached laterally or frontally. Capacitive proximity switches are used for presence detection (e.g. sealing detection), positioning (e.g. PET bottles), counting (e.g. plastic caps), level detection (e.g. lubricant) or distance measurements (e.g. thickness measurement) of solid and liquid materials.
Mounting method: | Other |
Height: | 55mm |
Design: | Cuboid |
Housing material: | Plastic ABS |
Device design: | Field device |
Width: | 122mm |
Depth: | 60mm |
Length: | 147mm |
Degree of protection (IP): | IP54 |
Voltage type: | DC |
Type of voltage supply: | Active |
Type of electrical connection: | Clamp |
Type of switching function: | Anticoincidence |
Number of output circuits, transistor exclusive-OR: | 4 |
No-load current: | 120mA |
Amplifier for capacitive sensors: | yes |
Number of channels: | 4 |
Switching voltage: | 24V |
Type of switching output: | PNP |
Rated switching current: | 0.4A |
Rated supply voltage at DC: | 18 - 36V |
Switching voltage DC: | 24V |
Output version: | Static |
Operating temperature: | -25 - 55°C |
eClass 7.0: | 27210121 |
eClass 7.1: | 27210121 |
eClass 8.0: | 27210121 |
eClass 9.0: | 27210121 |
eClass 9.1: | 27210121 |
ETIM-6.0: | EC001485 |
ETIM-7.0: | EC001485 |
IPF Product Group: | 243 |
shipping weight: | 0.53kg |
packaging dimensions: | 125.0mm x 60mm x 160mm |
customs tariff number: | 85365019 |
