Product
IPF
KN98C149
Request a Quote
Image copyright: IPF

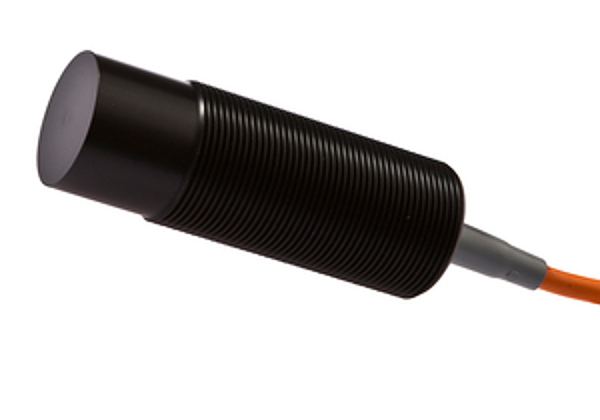

IPF KN98C149
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Wire cross section: | 0.34mm² |
| Design: | Cylinder, screw-thread |
| Number of cores: | 5 |
| Thread size, metric: | 32 |
| Mechanical mounting condition for sensor: | Non-flush |
| Degree of protection (IP): | IP67 |
| Sensor length: | 90mm |
| Cable length: | 5m |
| Housing material: | Polyoxymethylene (POM) |
| Ambient temperature: | -25 - 75°C |
| Thread pitch: | 1.5mm |
| Material of cable sheath: | PVC |
| Pressure-proof: | no |
| Voltage type: | AC/DC |
| Switching frequency: | 1Hz |
| Switching distance: | 2 - 25mm |
| Type of switching output: | Relay contact |
| Rated control supply voltage Us at DC: | 20 - 250V |
| Supply voltage: | 20 - 250V |
| Hysteresis: | 15% |
| Cascadable: | no |
| Switching distance: | 15mm |
| Type of electrical connection: | Cable |
| Type of switching function: | Change-over contact |
| No-load current: | 1.7mA |
| Rated switching current: | 1000mA |
| eClass 7.0: | 27270102 |
| eClass 7.1: | 27270102 |
| eClass 8.0: | 27270102 |
| eClass 9.0: | 27270102 |
| eClass 9.1: | 27270102 |
| ETIM-6.0: | EC002715 |
| ETIM-7.0: | EC002715 |
| IPF Product Group: | 700 |
| shipping weight: | 0.51kg |
| packaging dimensions: | 138.0mm x 95.0mm x 210mm |
| customs tariff number: | 85365080 |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
