Product
IPF
KN344107
Request a Quote

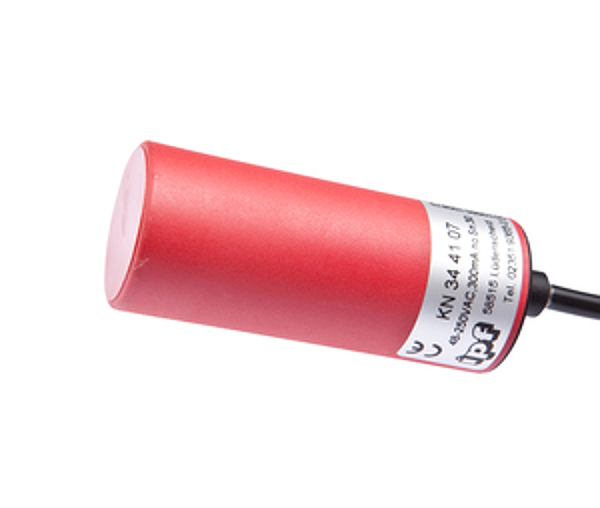

Image copyright: IPF
IPF KN344107
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Cable length: | 2m |
| Housing material: | PBT |
| Ambient temperature: | -25 - 70°C |
| Active area material of sensor: | PA 6.6 (synthetic) |
| Degree of protection (IP): | IP67 |
| Sensor diameter: | 34mm |
| Design: | Cylinder plain |
| Number of cores: | 2 |
| Mechanical mounting condition for sensor: | Non-flush |
| Material of cable sheath: | PVC |
| Pressure-proof: | no |
| Sensor length: | 81mm |
| Voltage type: | AC |
| Switching frequency: | 15Hz |
| Switching distance: | 6 - 30mm |
| Type of switching output: | Two-wire |
| Rated control supply voltage Us at AC 50HZ: | 20 - 250V |
| No-load current: | 15mA |
| Supply voltage: | 20 - 250V |
| Hysteresis: | 15% |
| Correction factor (wood): | 0.6 |
| Correction factor (oil): | 0.5 |
| Cascadable: | no |
| Switching distance: | 30mm |
| Type of electrical connection: | Cable |
| Type of switching function: | Normally open contact |
| Setting procedure: | Manual adjustment |
| Min. output current: | 5mA |
| Rated switching current: | 300mA |
| Voltage drop: | 10V |
| Correction factor (glass): | 0.6 |
| Correction factor (PVC): | 0.5 |
| eClass 7.0: | 27270102 |
| eClass 7.1: | 27270102 |
| eClass 8.0: | 27270102 |
| eClass 9.0: | 27270102 |
| eClass 9.1: | 27270102 |
| ETIM-6.0: | EC002715 |
| ETIM-7.0: | EC002715 |
| IPF Product Group: | 243 |
| shipping weight: | 0.24kg |
| packaging dimensions: | 74.0mm x 74.0mm x 143.0mm |
| customs tariff number: | 85365080 |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
