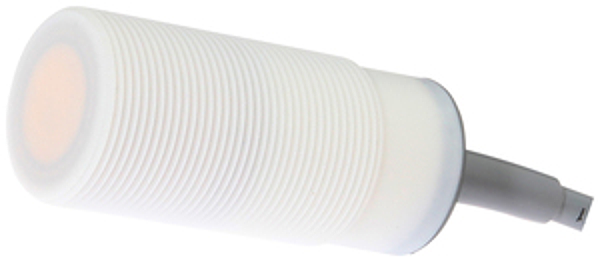

KB32C501
Wire cross section: | 0.5mm² |
Housing material: | PTFE |
Ambient temperature: | -25 - 70°C |
Thread pitch: | 1.5mm |
Material of cable sheath: | PUR (Polyurethane) |
Pressure-proof: | no |
Design: | Cylinder, screw-thread |
Number of cores: | 4 |
Thread size, metric: | 32 |
Mechanical mounting condition for sensor: | Flush |
Degree of protection (IP): | IP67 |
Sensor length: | 70mm |
Voltage type: | DC |
Number of switching outputs: | 2 |
Switching distance: | 20mm |
Type of electrical connection: | Cable |
Type of switching function: | Anticoincidence |
No-load current: | 15mA |
Rated switching current: | 250mA |
Reverse polarity protection: | yes |
Cascadable: | no |
Switching frequency: | 200Hz |
Switching distance: | 0.5 - 30mm |
Type of switching output: | PNP |
Rated control supply voltage Us at DC: | 10 - 35V |
Supply voltage: | 10 - 35V |
Short-circuit protection: | yes |
Voltage drop: | 2V |
eClass 7.0: | 27270102 |
eClass 7.1: | 27270102 |
eClass 8.0: | 27270102 |
eClass 9.0: | 27270102 |
eClass 9.1: | 27270102 |
ETIM-6.0: | EC002715 |
ETIM-7.0: | EC002715 |
IPF Product Group: | 700 |
shipping weight: | 0.27kg |
packaging dimensions: | 124.0mm x 35.0mm x 149.0mm |
customs tariff number: | 85365019 |
