KB087000

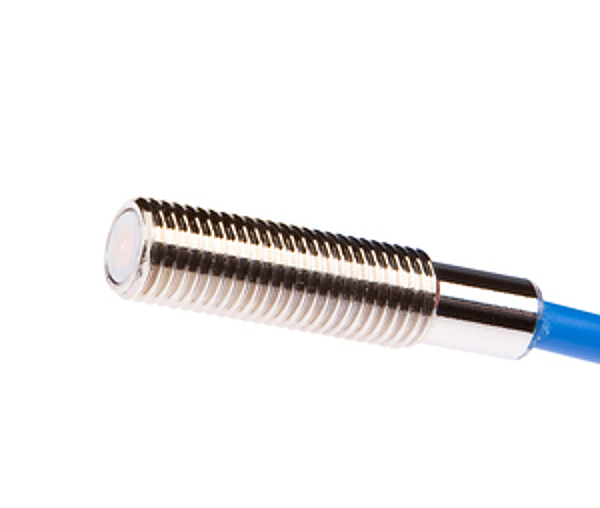

Sensor capacitive, M8x1 35long, Flush, Sn: 0.5, NAMUR Amplifier, Cable, IP67, Brass Nickel-plated, ATEX
Capacitive proximity switches are contact-free sensors. They detect metallic and non-metallic objects, regardless of whether they move or not. The achievable sensing range of the devices depends on the object material, its dimensions and the response sensitivity, which is set via a potentiometer. The vibration-resistant sensors can be approached laterally or frontally. Capacitive proximity switches are used for presence detection (e.g. sealing detection), positioning (e.g. PET bottles), counting (e.g. plastic caps), level detection (e.g. lubricant) or distance measurements (e.g. thickness measurement) of solid and liquid materials.
Design: | Cylinder, screw-thread |
Housing coating: | Nickel-plated |
Thread size, metric: | 8 |
Mechanical mounting condition for sensor: | Flush |
Pressure-proof: | no |
Housing material: | Brass |
Ambient temperature: | -25 - 70°C |
Thread pitch: | 1mm |
Degree of protection (IP): | IP67 |
Sensor length: | 35mm |
Voltage type: | DC |
Switching distance: | 0.5 - 0.5mm |
Type of electrical connection: | Cable |
Type of switching function: | Amplifier |
Cascadable: | no |
Switching distance: | 0.5mm |
Type of switching output: | NAMUR |
Explosion safety category for gas: | ATEX gas-ex-protection, Cat. 1G |
eClass 7.0: | 27270102 |
eClass 7.1: | 27270102 |
eClass 8.0: | 27270102 |
eClass 9.0: | 27270102 |
eClass 9.1: | 27270102 |
ETIM-6.0: | EC002715 |
ETIM-7.0: | EC002715 |
IPF Product Group: | 243 |
shipping weight: | 0.11kg |
packaging dimensions: | 124.0mm x 28.0mm x 149.0mm |
customs tariff number: | 85365019 |
ECCN: | |
Country of Origin: | |
EAN: | |
Weight: | 0.00 kg |
Length: | 0.00 m |
Width: | 0.00 m |
Height: | 0.00 m |
