Product
IPF
IY190175
Request a Quote
Image copyright: IPF

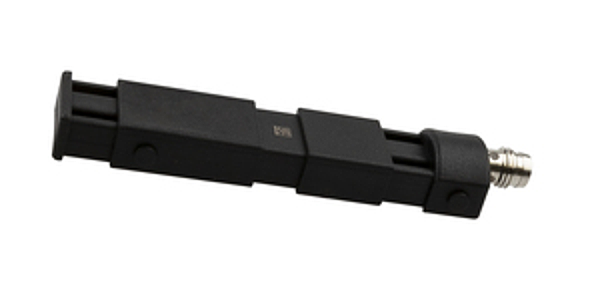

IPF IY190175
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Cable infeed: | Axial |
| Design: | Cuboid |
| Ambient temperature: | -25 - 75°C |
| Active area material of sensor: | PA 6.6 (synthetic) |
| Sensor width: | 19mm |
| Sensor height: | 78.5mm |
| Housing material: | PA 6.6 (synthetic) |
| Mechanical mounting condition for sensor: | Non-flush |
| Degree of protection (IP): | IP67 |
| Pressure-proof: | no |
| Sensor length: | 9mm |
| Voltage type: | DC |
| Number of pins: | 3 |
| Switching distance: | 10mm |
| Type of switching output: | PNP |
| No-load current: | 10mA |
| Supply voltage: | 10 - 30V |
| Short-circuit protection: | yes |
| Hysteresis: | 15% |
| Switching behavior of the output: | Static |
| Cascadable: | no |
| Switching frequency: | 300Hz |
| Type of electrical connection: | Connector M8 |
| Type of switching function: | Normally open contact |
| Relative repeat accuracy: | 10% |
| Rated switching current: | 200mA |
| Reverse polarity protection: | yes |
| Voltage drop: | 2.4V |
| eClass 7.0: | 27270101 |
| eClass 7.1: | 27270101 |
| eClass 8.0: | 27270101 |
| eClass 9.0: | 27270101 |
| eClass 9.1: | 27270101 |
| ETIM-6.0: | EC002714 |
| ETIM-7.0: | EC002714 |
| IPF Product Group: | 211 |
| shipping weight: | 0.03kg |
| packaging dimensions: | 100mm x 17.0mm x 120mm |
| customs tariff number: | 85365019 |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
