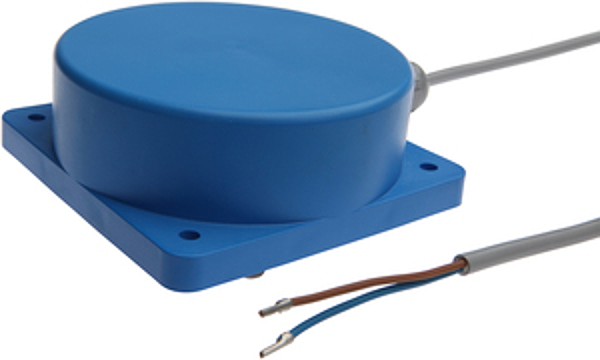

Article image INKA4300

IPF INKA4300

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

Technical parameters

Cable infeed: Axial
Cable length: 2m
Housing material: PBT
Ambient temperature: -25 - 75°C
Active area material of sensor: PBT
Degree of protection (IP): IP67
Pressure-proof: no
Sensor height: 105mm
Alignment of cable entry: Axial
Design: Cylinder plain
Number of cores: 2
Mechanical mounting condition for sensor: Non-flush
Material of cable sheath: PVC
Sensor width: 105mm
Sensor diameter: 105mm
Sensor length: 40mm
Voltage type: AC
Switching frequency: 10Hz
Type of electrical connection: Cable
Type of switching function: Anticoincidence
Supply voltage: 20 - 250V
Reverse polarity protection: yes
Correction factor (stainl. steel): 0.7
Correction factor (brass): 0.4
Voltage drop: 6V
Cascadable: no
Switching distance: 70mm
Type of switching output: Two-wire
No-load current: 2.5mA
Rated switching current: 400mA
Correction factor (St37): 1
Correction factor (aluminum): 0.4
Correction factor (copper): 0.3
eClass 7.0: 27270101
eClass 7.1: 27270101
eClass 8.0: 27270101
eClass 9.0: 27270101
eClass 9.1: 27270101
ETIM-6.0: EC002714
ETIM-7.0: EC002714
IPF Product Group: 203
shipping weight: 0.69kg
packaging dimensions: 160mm x 42.0mm x 220mm
customs tariff number: 85365080

Logistic parameters

ECCN:
Country of Origin:
EAN:
Weight: 0.00 kg
Length: 0.00 m
Width: 0.00 m
Height: 0.00 m
