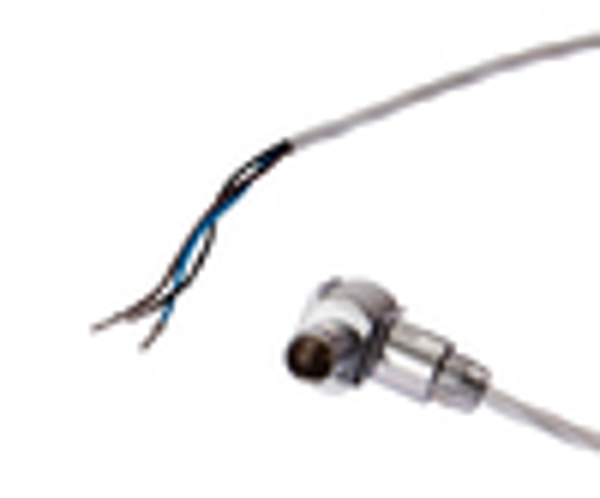

Article image IC1201L0

IPF IC1201L0

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

Technical parameters

Cable infeed: Axial
Thread length: 45mm
Housing material: Stainless steel 1.4305
Thread size, metric: 12
Mechanical mounting condition for sensor: Flush
Degree of protection (IP): IP65
Sensor length: 70mm
Design: Cylinder, screw-thread
Ambient temperature: -25 - 130°C
Thread pitch: 1mm
Active area material of sensor: Stainless steel 1.4305
Pressure-proof: no
Alignment of cable entry: Axial
Voltage type: DC
Number of pins: 3
Switching distance: 2mm
Type of switching output: PNP
No-load current: 15mA
Rated switching current: 150mA
Reverse polarity protection: yes
Correction factor (St37): 1
Correction factor (brass): 0.1
Norm measuring plate: 12x12x1mm
Cascadable: no
Switching frequency: 40Hz
Type of electrical connection: Lemosa-connector (mini)
Type of switching function: Normally open contact
Supply voltage: 7 - 35V
Short-circuit protection: yes
Hysteresis: 15%
Correction factor (stainl. steel): 0.6
Voltage drop: 2V
eClass 7.0: 27270101
eClass 7.1: 27270101
eClass 8.0: 27270101
eClass 9.0: 27270101
eClass 9.1: 27270101
ETIM-6.0: EC002714
ETIM-7.0: EC002714
IPF Product Group: 206
shipping weight: 0.03kg
packaging dimensions: 100mm x 0.0mm x 120mm
customs tariff number: 85365019

Logistic parameters

ECCN:
Country of Origin:
EAN:
Weight: 0.00 kg
Length: 0.00 m
Width: 0.00 m
Height: 0.00 m
