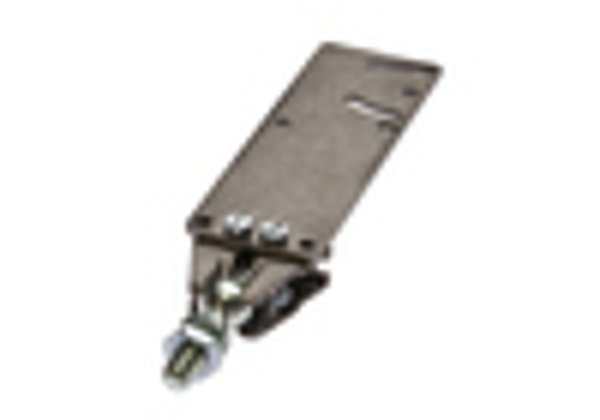

IPF IB265100
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Cable infeed: | Axial |
| Wire cross section: | 0.24mm² |
| Design: | Cuboid |
| Ambient temperature: | -25 - 70°C |
| Active area material of sensor: | PA 12 |
| Degree of protection (IP): | IP67 |
| Pressure-proof: | no |
| Sensor length: | 26mm |
| Cable length: | 2m |
| Housing material: | PA 12 |
| Mechanical mounting condition for sensor: | Flush |
| Material of cable sheath: | PVC |
| Sensor width: | 12mm |
| Sensor height: | 40mm |
| Voltage type: | AC/DC |
| Switching frequency: | 400Hz |
| Type of electrical connection: | Cable |
| Type of switching function: | Normally open contact |
| Min. output current: | 5mA |
| Supply voltage: | 20 - 250V |
| Hysteresis: | 15% |
| Cascadable: | no |
| Switching distance: | 4mm |
| Type of switching output: | Two-wire |
| No-load current: | 1.7mA |
| Relative repeat accuracy: | 5% |
| Rated switching current: | 130mA |
| Voltage drop: | 12V |
| eClass 7.0: | 27270101 |
| eClass 7.1: | 27270101 |
| eClass 8.0: | 27270101 |
| eClass 9.0: | 27270101 |
| eClass 9.1: | 27270101 |
| ETIM-6.0: | EC002714 |
| ETIM-7.0: | EC002714 |
| IPF Product Group: | 215 |
| shipping weight: | 0.09kg |
| packaging dimensions: | 77.0mm x 25.0mm x 123.0mm |
| customs tariff number: | 85365080 |
