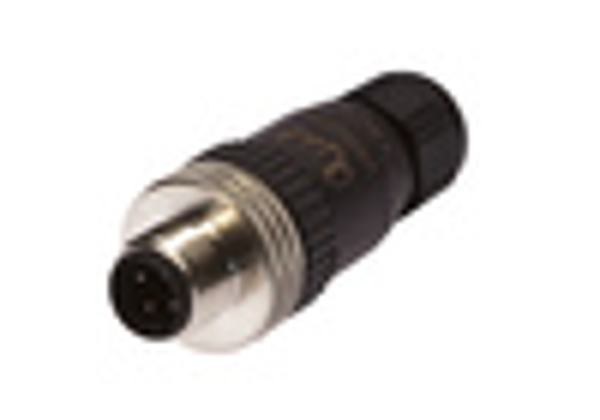

Article image IB130156

IPF IB130156

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

Technical parameters

Cable infeed: Axial
Cable length: 5m
Housing material: Stainless steel 1.4305
Mechanical mounting condition for sensor: Flush
Material of cable sheath: Silicone
Sensor width: 12mm
Sensor height: 60mm
Design: Cuboid
Ambient temperature: 0 - 130°C
Active area material of sensor: Vectra®
Degree of protection (IP): IP65
Pressure-proof: no
Sensor length: 12mm
Voltage type: DC
Switching frequency: 500Hz
Type of electrical connection: Cable
Type of switching function: Normally open contact
Rated switching current: 200mA
Reverse polarity protection: yes
Voltage drop: 2V
Cascadable: no
Switching distance: 4mm
Type of switching output: PNP
Supply voltage: 10 - 30V
Short-circuit protection: yes
Hysteresis: 15%
eClass 7.0: 27270101
eClass 7.1: 27270101
eClass 8.0: 27270101
eClass 9.0: 27270101
eClass 9.1: 27270101
ETIM-6.0: EC002714
ETIM-7.0: EC002714
IPF Product Group: 202
shipping weight: 0.15kg
packaging dimensions: 124.0mm x 28.0mm x 149.0mm
customs tariff number: 85365019

Logistic parameters

ECCN:
Country of Origin:
EAN:
Weight: 0.00 kg
Length: 0.00 m
Width: 0.00 m
Height: 0.00 m
