Product
IPF
IB06A425
Request a Quote

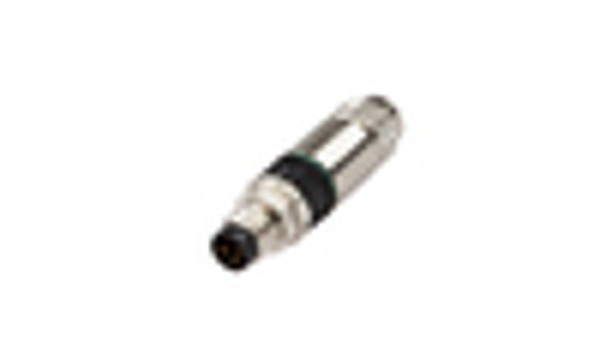

Image copyright: IPF
IPF IB06A425
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Cable infeed: | Radial |
| Cable length: | 2m |
| Housing material: | Stainless steel |
| Mechanical mounting condition for sensor: | Flush |
| Degree of protection (IP): | IP67 |
| Sensor diameter: | 6.5mm |
| Alignment of cable entry: | Axial |
| Design: | Cylinder plain |
| Ambient temperature: | -25 - 70°C |
| Material of cable sheath: | PVC |
| Pressure-proof: | no |
| Sensor length: | 16mm |
| Voltage type: | DC |
| Switching frequency: | 3000Hz |
| Type of electrical connection: | Cable |
| Type of switching function: | Normally open contact |
| Relative repeat accuracy: | 2% |
| Rated switching current: | 200mA |
| Residual ripple: | 20% |
| Norm measuring plate: | 6.5x6.5x1mm |
| IO-Link compatible: | yes |
| Cascadable: | no |
| Switching distance: | 2mm |
| Type of switching output: | PNP |
| No-load current: | 10mA |
| Supply voltage: | 10 - 30V |
| Hysteresis: | 10% |
| Voltage drop: | 2V |
| Readiness delay: | 10ms |
| eClass 7.0: | 27270101 |
| eClass 7.1: | 27270101 |
| eClass 8.0: | 27270101 |
| eClass 9.0: | 27270101 |
| eClass 9.1: | 27270101 |
| ETIM-6.0: | EC002714 |
| ETIM-7.0: | EC002714 |
| IPF Product Group: | 700 |
| shipping weight: | 0.03kg |
| packaging dimensions: | 100mm x 0.0mm x 120mm |
| customs tariff number: | 85365019 |
