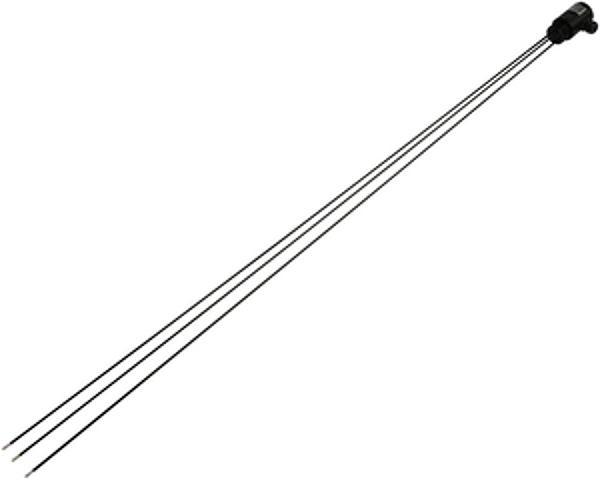

Article image FS926030

IPF FS926030

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

Technical parameters

Thread length: 15mm
Pressure resistance: 10bar
Ambient temperature: -10 - 100°C
Degree of protection (IP): IP65
Sensor diameter: 40mm
Sensor length: 1052mm
Sensing element material: Stainless steel 1.4571
Probe diameter: 4mm
Design: Special construction
Housing material: Polyamide
Thread size, inches: 1 inch
Type of process connection: G1 inch
Sensor height: 52mm
Medium temperature: -20 - 100°C
Probe length: 1000mm
Number of pins: 3
Type of switching output: Amplifier
Physical measurement principle: Conductive
Type of electrical connection: Clamps
Type of switching function: Amplifier
Number of probes: 3
eClass 7.0: 27371813
eClass 7.1: 27371813
eClass 8.0: 27371813
eClass 9.0: 27371813
eClass 9.1: 27371813
ETIM-6.0: EC001447
ETIM-7.0: EC001447
IPF Product Group: 350
shipping weight: 0.5kg
packaging dimensions: 70mm x 50mm x 1170mm
customs tariff number: 85365019

Logistic parameters

ECCN:
Country of Origin:
EAN:
Weight: 0.00 kg
Length: 0.00 m
Width: 0.00 m
Height: 0.00 m
