Product
IPF
FK98E238
Request a Quote
Image copyright: IPF

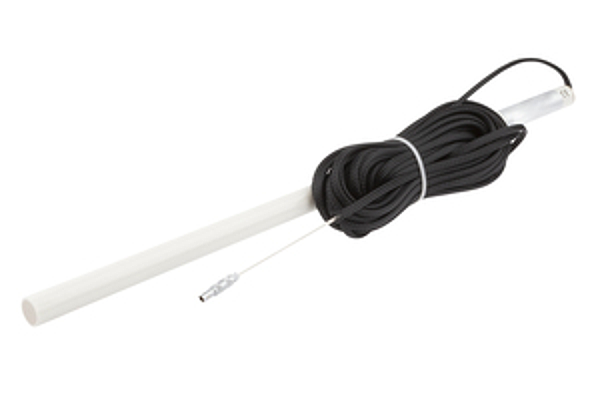

IPF FK98E238
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Cable length: | 10m |
| Housing material: | Other |
| Ambient temperature: | -70 - 200°C |
| Sensor diameter: | 16mm |
| Medium temperature: | -70 - 200°C |
| Probe length: | 450mm |
| Design: | Cylinder plain |
| Number of cores: | 2 |
| Degree of protection (IP): | IP67 |
| Sensor length: | 450mm |
| Sensing element material: | GRP |
| Probe diameter: | 16mm |
| Type of electrical connection: | SMB |
| Type of switching function: | Amplifier |
| Physical measurement principle: | Capacitive |
| Type of switching output: | Amplifier |
| Setting procedure: | Manual adjustment |
| eClass 7.0: | 27371813 |
| eClass 7.1: | 27371813 |
| eClass 8.0: | 27371813 |
| eClass 9.0: | 27371813 |
| eClass 9.1: | 27371813 |
| ETIM-6.0: | EC001447 |
| ETIM-7.0: | EC001447 |
| IPF Product Group: | 700 |
| shipping weight: | 0.29kg |
| packaging dimensions: | 120mm x 50mm x 500mm |
| customs tariff number: | 85365019 |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
