Product
IPF
FK98C975
Request a Quote
Image copyright: IPF

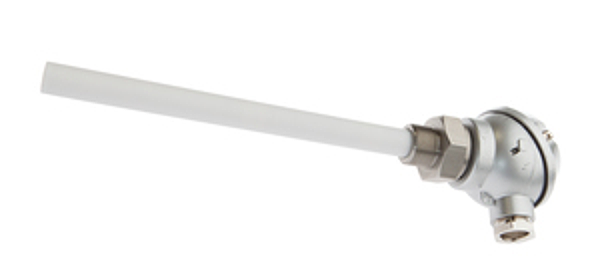

IPF FK98C975
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Thread length: | 12mm |
| Housing material: | Aluminum |
| Thread size, metric: | 18 |
| Degree of protection (IP): | IP67 |
| Sensor diameter: | 57mm |
| Medium temperature: | -25 - 125°C |
| Probe length: | 150mm |
| Design: | Special construction |
| Ambient temperature: | -25 - 125°C |
| Thread pitch: | 1mm |
| Type of process connection: | M18 |
| Sensor length: | 221mm |
| Sensing element material: | PTFE |
| Probe diameter: | 12mm |
| Number of pins: | 4 |
| Switching distance: | 0 - 15mm |
| Type of switching output: | PNP |
| Rated control supply voltage Us at DC: | 10 - 35V |
| No-load current: | 8mA |
| Short-circuit protection: | yes |
| Voltage type for actuation: | DC |
| Reverse polarity protection: | yes |
| Switching frequency: | 20Hz |
| Type of electrical connection: | Clamps |
| Type of switching function: | Normally closed contact |
| Setting procedure: | Manual adjustment |
| Rated switching current: | 250mA |
| Physical measurement principle: | Capacitive |
| Number of contacts as normally closed contact: | 1 |
| Voltage drop: | 1.5V |
| eClass 7.0: | 27371813 |
| eClass 7.1: | 27371813 |
| eClass 8.0: | 27371813 |
| eClass 9.0: | 27371813 |
| eClass 9.1: | 27371813 |
| ETIM-6.0: | EC001447 |
| ETIM-7.0: | EC001447 |
| IPF Product Group: | 700 |
| shipping weight: | 0.36kg |
| packaging dimensions: | 138.0mm x 95.0mm x 210mm |
| customs tariff number: | 85365019 |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
