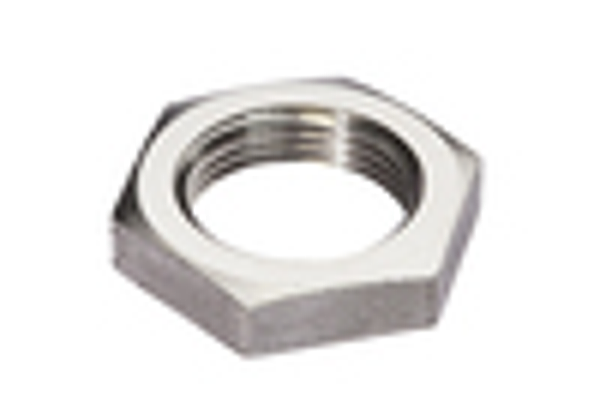

Article image FK920401

IPF FK920401

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

Technical parameters

Wire cross section: 0.5mm²
Cable length: 5m
Housing material: PTFE
Ambient temperature: -25 - 70°C
Material of cable sheath: PVC
Type of process connection: G1 inch
Sensor length: 113mm
Sensing element material: PTFE
Probe diameter: 26mm
Thread length: 25mm
Design: Special construction
Number of cores: 4
Thread size, inches: 1 inch
Degree of protection (IP): IP67
Sensor diameter: 40mm
Medium temperature: -25 - 75°C
Probe length: 68mm
Switching frequency: 50Hz
Type of switching output: PNP
Rated control supply voltage Us at DC: 10 - 35V
No-load current: 15mA
Short-circuit protection: yes
Voltage type for actuation: DC
Number of contacts as normally open contact: 1
Voltage drop: 2V
Type of electrical connection: Cable
Type of switching function: Normally closed contact/normally open contact
Setting procedure: Manual adjustment
Rated switching current: 250mA
Physical measurement principle: Capacitive
Number of contacts as normally closed contact: 1
Reverse polarity protection: yes
eClass 7.0: 27371813
eClass 7.1: 27371813
eClass 8.0: 27371813
eClass 9.0: 27371813
eClass 9.1: 27371813
ETIM-6.0: EC001447
ETIM-7.0: EC001447
IPF Product Group: 350
shipping weight: 0.6kg
packaging dimensions: 138.0mm x 95.0mm x 210mm
customs tariff number: 85365019
