Product
IPF
FK920100
Request a Quote
Image copyright: IPF

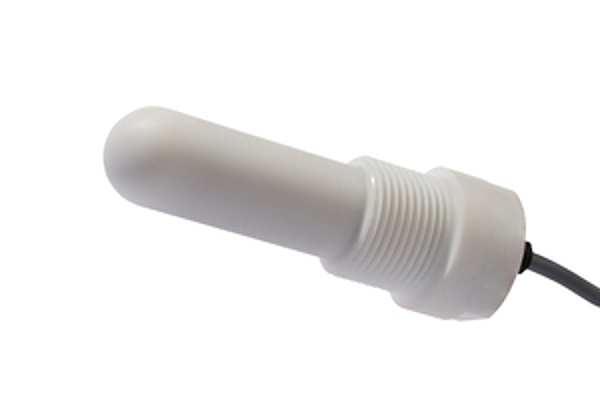

IPF FK920100
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Wire cross section: | 0.5mm² |
| Cable length: | 2m |
| Housing material: | PTFE |
| Ambient temperature: | -25 - 75°C |
| Material of cable sheath: | PVC |
| Type of process connection: | G1 inch |
| Medium temperature: | -25 - 75°C |
| Probe length: | 68mm |
| Thread length: | 25mm |
| Design: | Special construction |
| Number of cores: | 3 |
| Thread size, inches: | 1 inch |
| Degree of protection (IP): | IP67 |
| Sensor length: | 113mm |
| Sensing element material: | PTFE |
| Probe diameter: | 26mm |
| Switching frequency: | 10Hz |
| Type of switching output: | PNP |
| Rated control supply voltage Us at DC: | 10 - 55V |
| No-load current: | 4mA |
| Short-circuit protection: | yes |
| Voltage type for actuation: | DC |
| Reverse polarity protection: | yes |
| Type of electrical connection: | Cable |
| Type of switching function: | Normally open contact |
| Setting procedure: | Manual adjustment |
| Rated switching current: | 400mA |
| Physical measurement principle: | Capacitive |
| Number of contacts as normally open contact: | 1 |
| Voltage drop: | 1V |
| eClass 7.0: | 27371813 |
| eClass 7.1: | 27371813 |
| eClass 8.0: | 27371813 |
| eClass 9.0: | 27371813 |
| eClass 9.1: | 27371813 |
| ETIM-6.0: | EC001447 |
| ETIM-7.0: | EC001447 |
| IPF Product Group: | 350 |
| shipping weight: | 0.28kg |
| packaging dimensions: | 74.0mm x 74.0mm x 143.0mm |
| customs tariff number: | 85365019 |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
