Product
IPF
ER1E8I40
Request a Quote
Image copyright: IPF

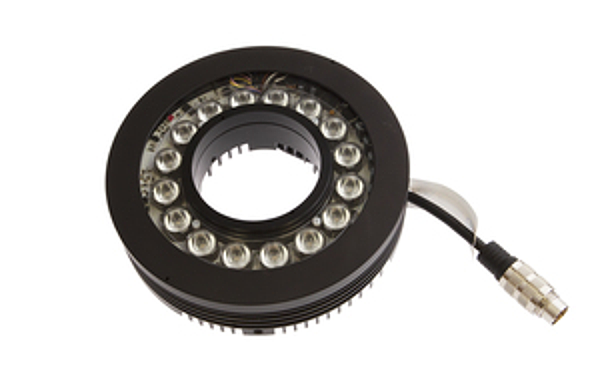

IPF ER1E8I40
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Height: | 39mm |
| Design: | Round |
| Housing material: | Aluminum |
| Degree of protection (IP): | IP67 |
| Diameter: | 156mm |
| Length: | 39mm |
| Ambient temperature: | 5 - 45°C |
| Front screen material: | Acrylic glass |
| Protection class: | III |
| Voltage type: | DC |
| Type of electrical connection: | Cable connector M16 |
| Rated operation current: | 800.00mA |
| Lamp power: | 19.2W |
| Number of pins: | 12 |
| Nominal supply voltage: | 19 - 30V |
| Radiation angle: | 90° |
| Light source: | Infrared light |
| Number of LEDs: | 16 |
| Light version: | Ring lights |
| Lamp: | LED |
| With lamp: | yes |
| Wavelength of the lamp: | 850nm |
| eClass 7.0: | 27310204 |
| eClass 7.1: | 27310204 |
| eClass 8.0: | 27310204 |
| eClass 9.0: | 27310204 |
| eClass 9.1: | 27310204 |
| ETIM-7.0: | EC000348 |
| IPF Product Group: | 915 |
| shipping weight: | 1.13kg |
| packaging dimensions: | 205.0mm x 120mm x 310mm |
| customs tariff number: | 94054099 |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
