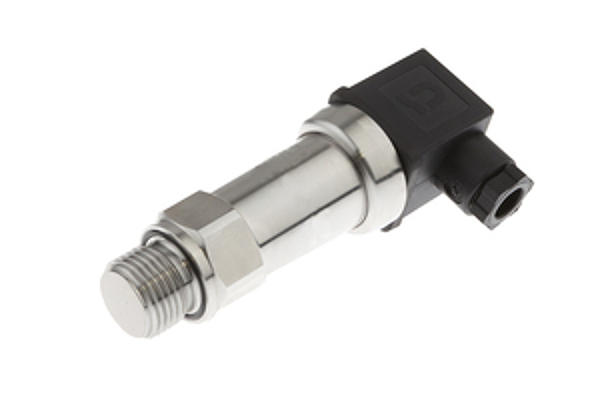

DT98C079
Thread length: | 20.5mm |
Housing material: | Stainless steel 1.4404 |
Thread pitch: | 1.81mm |
Bursting pressure: | 1250bar |
Sensor diameter: | 26.5mm |
Medium temperature: | -40 - 125°C |
Sensing element material: | Stainless steel 1.4435 |
Max. operating pressure: | 600bar |
Design: | Cylinder plain |
Ambient temperature: | -40 - 85°C |
Degree of protection (IP): | IP65 |
Type of pressure connection: | G1/2 inch A |
Sensor length: | 111mm |
Nominal pressure: | 600bar |
Front-flush membrane: | yes |
CIP compatible: | yes |
Voltage type: | DC |
Type of analog output: | 4 mA ... 20 mA |
Operating voltage: | 8 - 32V |
Rated operating voltage Ue at DC: | 8 - 32V |
Temperature drift: | 0.75% |
Response time: | 10ms |
Measurement method: | Relative |
Number of pins: | 2 |
Type of electrical connection: | Valve connector type A |
Relative measurement accuracy: | 0.35% |
Short-circuit protection: | yes |
Reverse polarity protection: | yes |
Measuring range pressure: | 0 - 600bar |
Compatible with foodstuff: | yes |
Measuring display: | Relative |
eClass 7.0: | 27371814 |
eClass 7.1: | 27371814 |
eClass 8.0: | 27371814 |
eClass 9.0: | 27371814 |
eClass 9.1: | 27371814 |
ETIM-6.0: | EC000243 |
ETIM-7.0: | EC000243 |
IPF Product Group: | 700 |
shipping weight: | 0.41kg |
packaging dimensions: | 138.0mm x 95.0mm x 210mm |
customs tariff number: | 90262020 |
