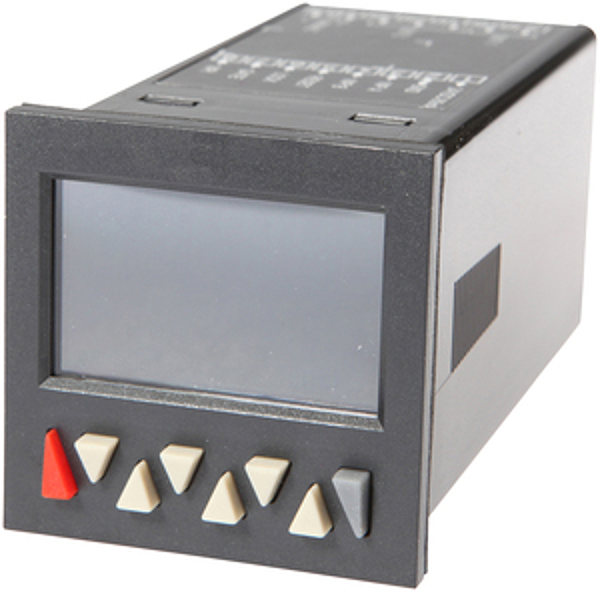

Article image CM034980

IPF CM034980

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

Technical parameters

Mounting method: Front mounting
Height: 48mm
Length: 106.6mm
Ambient temperature: -20 - 65°C
Storage temperature: -25 - 75°C
Width: 48mm
Installation depth: 108mm
Housing material: Plastic PC
Degree of protection (IP): IP65
Voltage type: AC
Switching capacity: 30VA
Number of switching outputs: 2
Primary voltage: 260V
Type of switching output: Relay contact
Rated control supply voltage Us at AC 50HZ: 90 - 260V
Input voltage frequency: 50Hz
Max. output current 1: 3A
Transducer power supply voltage: 24V
Number of decades: 12
Type of signal input A: PNP/NPN
Type of 2nd switching output: Relay contact
Number of presets to be set: 2
Display: LCD
Number of pins: 13
Switching voltage: 250V
Type of electrical connection: Screw connection
Type of switching function: Change-over contact (NO/NC)
Operating voltage: 90 - 265V
Rated switching current: 3A
Max. output current 2: 3A
Transducer power supply current: 80mA
Counting frequency: 30kHz
Type of signal input B: PNP/NPN
Type of 2nd switching function: Change-over contact (NO/NC)
Timed output: 0.01 - 99.99s
Number of characters: 12
Air humidity(MIN): 93 - 93%
eClass 7.0: 27200414
eClass 7.1: 27200414
eClass 8.0: 27200414
eClass 9.0: 27200414
eClass 9.1: 27200414
ETIM-6.0: EC002300
ETIM-7.0: EC002300
IPF Product Group: 500
shipping weight: 0.36kg
packaging dimensions: 138.0mm x 95.0mm x 210mm
customs tariff number: 90291000

Logistic parameters

ECCN:
Country of Origin:
EAN:
Weight: 0.00 kg
Length: 0.00 m
Width: 0.00 m
Height: 0.00 m
