IPF
CM034483
Request a Quote
Image copyright: IPF

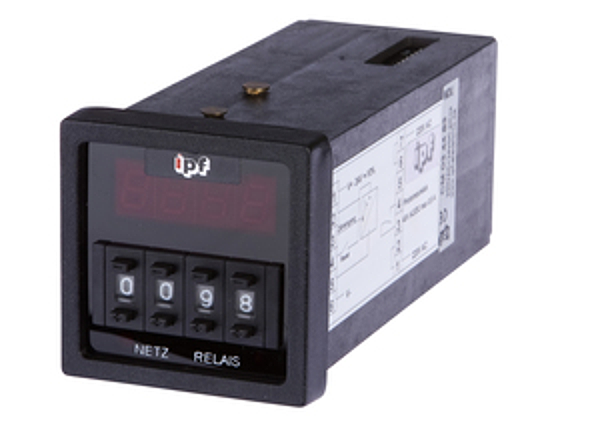

IPF CM034483
Counter multifunctional, Display LED, Digital, 4 decades, 0.02kHz, 1x preset, 1x Other NO (NO), Clamp, IP20, Plastic, Adding, With reset function, Display range 0-9999, With elapsed-time counting function
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Counters and elapsed-time counters. 230VAC+24VDC,pmos,500mA,20Hz,4st,Vorw
Technical parameters
| Mounting method: | Front mounting |
| Installation depth: | 115mm |
| Degree of protection (IP): | IP20 |
| Version: | Front mounting |
| Housing material: | Plastic |
| Voltage type: | AC/DC |
| Number of switching outputs: | 1 |
| Type of electrical connection: | Clamp |
| Type of switching function: | Normally open contact (NO) |
| Rated switching current: | 0.5A |
| Number of decades: | 4 |
| Type of signal input A: | PNP |
| Number of presets to be set: | 1 |
| Display: | LED |
| Switching voltage: | 40V |
| Type of switching output: | Other |
| Measuring mechanism: | Digital |
| Transducer power supply voltage: | 24V |
| Counting frequency: | 0.02kHz |
| Display range: | 0 - 9999 |
| Max. pnp input frequency: | 20Hz |
| Number of characters: | 4 |
| eClass 7.0: | 27200414 |
| eClass 7.1: | 27200414 |
| eClass 8.0: | 27200414 |
| eClass 9.0: | 27200414 |
| eClass 9.1: | 27200414 |
| ETIM-6.0: | EC002300 |
| ETIM-7.0: | EC002300 |
| IPF Product Group: | 500 |
| shipping weight: | 0.27kg |
| packaging dimensions: | 77.0mm x 25.0mm x 123.0mm |
| customs tariff number: | 90291000 |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
