Product
IPF
CI034410
Request a Quote
Image copyright: IPF

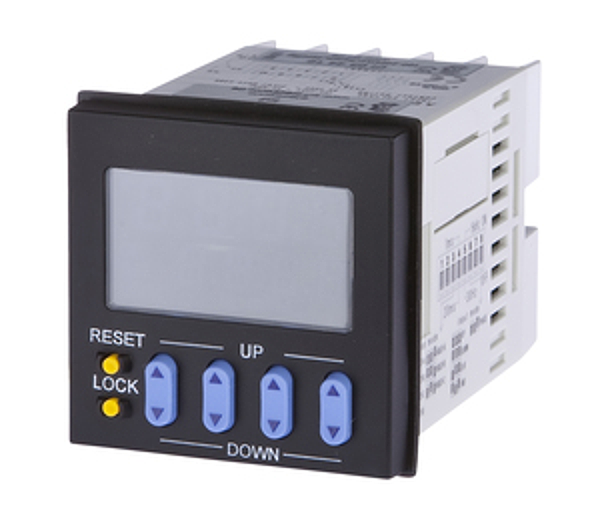

IPF CI034410
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Mounting method: | Front mounting |
| Height: | 48mm |
| Length: | 67.5mm |
| Ambient temperature: | -10 - 55°C |
| Width: | 48mm |
| Installation depth: | 72mm |
| Housing material: | Plastic |
| Degree of protection (IP): | IP66 |
| Voltage type: | AC |
| Number of pins: | 10 |
| Primary voltage: | 240V |
| Type of switching output: | Relay contact |
| Rated control supply voltage Us at AC 50HZ: | 100 - 240V |
| Rated switching current: | 5A |
| Number of decades: | 4 |
| Display range: | -999 - 9999 |
| Display: | LED |
| Switching voltage: | 250V |
| Type of electrical connection: | Screw connection |
| Type of switching function: | Change-over contact (NO/NC) |
| Operating voltage: | 100 - 240V |
| Response time: | 0ms |
| Counting frequency: | 5kHz |
| Number of presets to be set: | 1 |
| eClass 7.0: | 27200414 |
| eClass 7.1: | 27200414 |
| eClass 8.0: | 27200414 |
| eClass 9.0: | 27200414 |
| eClass 9.1: | 27200414 |
| ETIM-6.0: | EC002300 |
| ETIM-7.0: | EC002300 |
| IPF Product Group: | 500 |
| shipping weight: | 0.15kg |
| packaging dimensions: | 76.0mm x 50mm x 121.0mm |
| customs tariff number: | 90291000 |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
