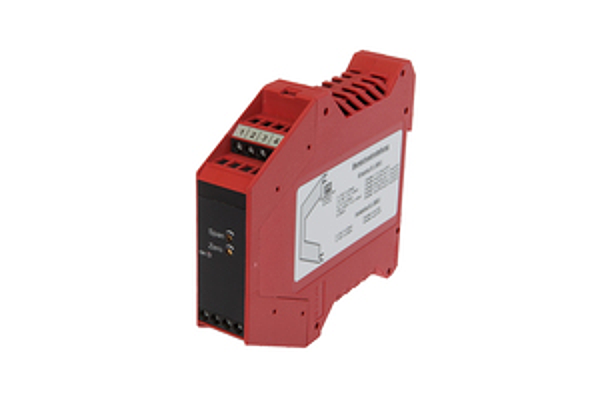

Image copyright: IPF
IPF BA565000
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Mounting method: | Top hat rail |
| Height: | 99mm |
| Housing material: | Plastic PC |
| Degree of protection (IP): | IP20 |
| Width: | 22.5mm |
| Length: | 114.5mm |
| Ambient temperature: | -40 - 70°C |
| Storage temperature: | -40 - 100°C |
| Voltage type: | AC/DC |
| Analog input, current: | yes |
| Analog output, current: | yes |
| Type of analog output: | 0 V ... 10 V / 4 mA ... 20 mA |
| Rated control supply voltage Us at AC 50HZ: | 20 - 253V |
| Rated control supply voltage Us at DC: | 20 - 253V |
| Relative measurement accuracy: | 0.4% |
| Temperature drift: | 0.05%/K |
| End value measuring range, current: | 0.02A |
| Resistance of current input: | 880Ohm |
| Alignment range zero-point: | -25 - 5% |
| Characteristic curve deviation: | 0.05% |
| Power consumption: | 3VA |
| Analog input, voltage: | yes |
| Analog output, voltage: | yes |
| Type of electrical connection: | Clamps |
| Rated control supply voltage Us at AC 60HZ: | 20 - 253V |
| Setting procedure: | Manual adjustment |
| Short-circuit protection: | yes |
| Initial value of measuring range, current: | 0A |
| Reverse polarity protection: | yes |
| Resistance of voltage input: | 1.25kOhm |
| Alignment range of end point: | -5 - 45% |
| Type of analog input: | 0 V ... 10 V / 4 mA ... 20 mA / 0 … 20 mA |
| eClass 7.0: | 27210123 |
| eClass 7.1: | 27210123 |
| eClass 8.0: | 27210123 |
| eClass 9.0: | 27210123 |
| eClass 9.1: | 27210123 |
| ETIM-6.0: | EC002475 |
| ETIM-7.0: | EC002475 |
| IPF Product Group: | 550 |
| packaging dimensions: | 124.0mm x 28.0mm x 149.0mm |
| customs tariff number: | 85437090 |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
