Product
IPF
AV98A438
Request a Quote

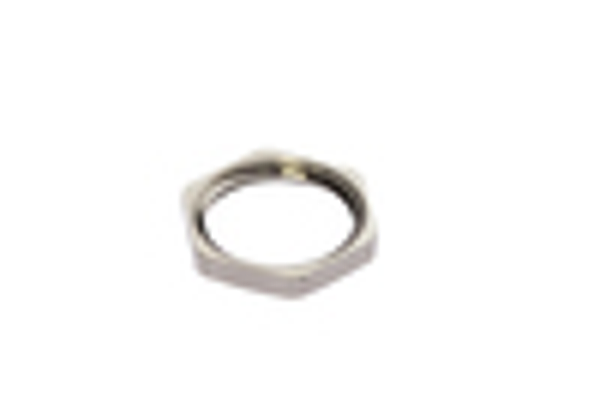

Image copyright: IPF
IPF AV98A438
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Wire cross section: | 0.34mm² |
| Ambient temperature: | -25 - 90°C |
| Degree of protection (IP): | IP68 |
| Contact body material: | Brass |
| Type of installation thread: | M16 |
| Number of cores: | 4 |
| Contact coating material: | Gold |
| Insulating body material: | PA |
| Pitch of installation thread: | 1.5mm |
| Type of mechanical connection: | Screw fitting M16 |
| Rated voltage: | 36V |
| Ampacity: | 4A |
| Type of electrical connection, outer side: | M12 |
| Length of single cores: | 0.5m |
| Number of pins: | 4 |
| Type of electrical connection, inner side: | Wire |
| Type of plug-in contact, outer side: | Female (socket) |
| Version: | Built-in socket, complete |
| eClass 7.0: | 27279202 |
| eClass 7.1: | 27279202 |
| eClass 8.0: | 27279202 |
| eClass 9.0: | 27273701 |
| eClass 9.1: | 27273701 |
| ETIM-6.0: | EC002061 |
| ETIM-7.0: | EC003570 |
| IPF Product Group: | 700 |
| shipping weight: | 0.03kg |
| packaging dimensions: | 100mm x 0.0mm x 120mm |
| customs tariff number: | 85444290 |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
