Product
IPF
AT000007
Request a Quote
Image copyright: IPF

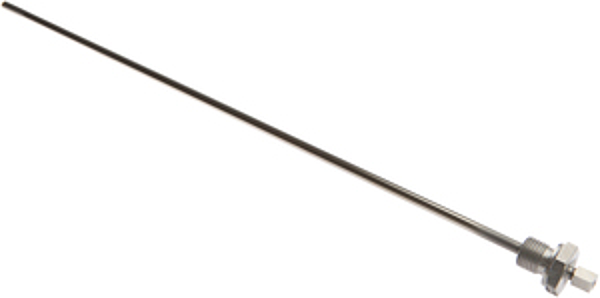

IPF AT000007
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Color: | Gray |
| Type of accessory: | Screw-in sleeve |
| Diameter: | 5mm |
| Length: | 300mm |
| Material: | Stainless steel |
| Thread size, inches: | 1/4 inch |
| With stainless steel V-ring: | yes |
| Surface: | Untreated |
| Installation depth: | 300mm |
| Pressure resistance: | 100bar |
| Thread type: | DIN/ISO 228 (G) |
| Mounting type: | Screwing |
| Temperature medium: | -40 - 350°C |
| Clamp fitting: | yes |
| eClass 7.0: | 27279202 |
| eClass 7.1: | 27279202 |
| eClass 8.0: | 27279202 |
| eClass 9.0: | 27273701 |
| eClass 9.1: | 27273701 |
| ETIM-6.0: | EC002351 |
| ETIM-7.0: | EC002351 |
| IPF Product Group: | 900 |
| shipping weight: | 0.06kg |
| packaging dimensions: | 60mm x 60mm x 350mm |
| customs tariff number: | 90259000 |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
