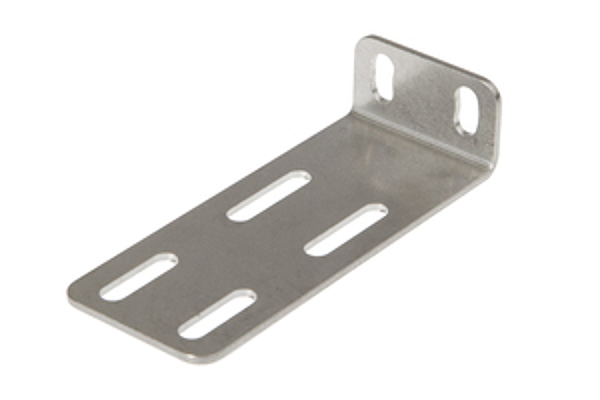

Article image AP000044

IPF AP000044

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

Technical parameters

Width: 30mm
Height: 75mm
Mounting type: Screwing
Number of oblong holes: 6
Diameter/width of the fastening holes for sensor: 7mm
Version: Mounting bracket
Depth: 17mm
Angle: 90°
Diameter/width of the fastening holes for sensor: 15mm
Scope of delivery: Angle
eClass 7.0: 27279202
eClass 7.1: 27279202
eClass 8.0: 27279202
eClass 9.0: 27273701
eClass 9.1: 27273701
ETIM-6.0: EC002625
ETIM-7.0: EC002625
IPF Product Group: 900
shipping weight: 0.03kg
packaging dimensions: 100mm x 18.0mm x 120mm
customs tariff number: 73269098

Logistic parameters

ECCN:
Country of Origin:
EAN:
Weight: 0.00 kg
Length: 0.00 m
Width: 0.00 m
Height: 0.00 m
