Product
IPF
AO000536
Request a Quote
Image copyright: IPF

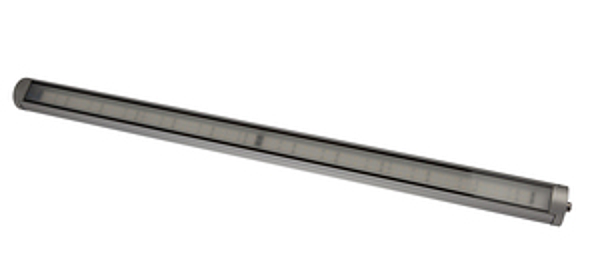

IPF AO000536
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Diameter: | 70mm |
| Length: | 300mm |
| Ambient temperature: | -10 - 50°C |
| Front screen material: | Hard glass |
| Design: | Pipe |
| Housing material: | Aluminum |
| Degree of protection (IP): | IP67 |
| Lamp power: | 17W |
| Voltage type: | AC |
| Type of electrical connection: | M12-S-connector |
| Rated operation current: | 773.00mA |
| Luminous flux: | 1000lm |
| Number of pins: | 4 |
| Nominal supply voltage: | 220 - 240V |
| Risk groups: | 0 |
| Color temperature: | 5500K |
| Light source: | Cold white |
| Light version: | Machine light |
| Radiation angle: | 100° |
| Number of LEDs: | 42 |
| eClass 7.0: | 27119010 |
| eClass 7.1: | 27119010 |
| eClass 8.0: | 27119010 |
| eClass 9.0: | 27110345 |
| eClass 9.1: | 27110345 |
| ETIM-7.0: | EC000348 |
| IPF Product Group: | 190 |
| shipping weight: | 2.52kg |
| packaging dimensions: | 160mm x 150mm x 5620mm |
| customs tariff number: | 94054099 |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
