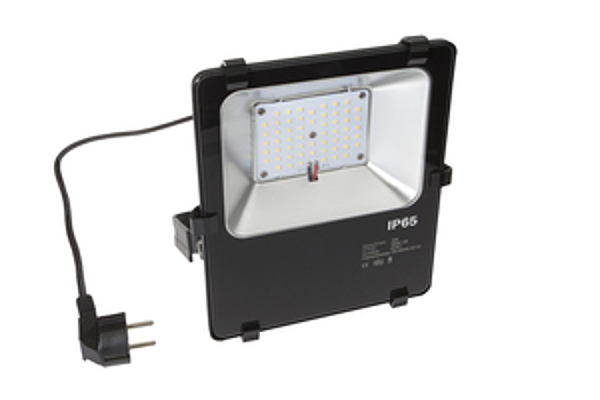

IPF AO000518
LED Floodlight, 45x212x180mm, Cold white, 30W, 120°, 6000K, 100-240V AC, Clamp, IP65, Aluminum+Safety glass
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
LED lights. LED lights are required in nearly every industrial sector. A lighting coordinated on the respective workplace ensures a better visibility, increases the production quality, the working safety and helps additionally to safe energy costs. Their long lifetime, which is independent of switching cycles, reduces maintenance costs and increases the availability. LED lights are used for the illumination of workplaces, work areas of machines, control cabinets and several other fields of application.
Technical parameters
| Width: | 180mm |
| Design: | Cuboid |
| Housing material: | Aluminum |
| Degree of protection (IP): | IP65 |
| Height: | 45mm |
| Length: | 212mm |
| Ambient temperature: | -20 - 40°C |
| Front screen material: | Safety glass |
| Protection class: | I |
| Luminous flux: | 3600lm |
| Type of electrical connection: | Clamp |
| Reverse polarity protection: | yes |
| Lamp power: | 30W |
| Voltage type: | AC |
| Nominal supply voltage: | 100 - 240V |
| Risk groups: | 0 |
| Color temperature: | 6000K |
| Lamp: | LED |
| Light version: | Floodlight |
| Radiation angle: | 120° |
| Light source: | Cold white |
| eClass 7.0: | 27119010 |
| eClass 7.1: | 27119010 |
| eClass 8.0: | 27119010 |
| eClass 9.0: | 27110345 |
| eClass 9.1: | 27110345 |
| ETIM-7.0: | EC000348 |
| IPF Product Group: | 191 |
| shipping weight: | 1.21kg |
| packaging dimensions: | 230mm x 90mm x 300mm |
| customs tariff number: | 94054099 |
