IPF
AO000488
Request a Quote

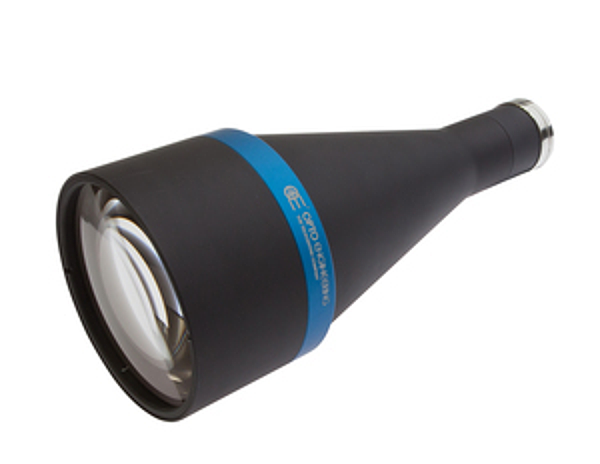

Image copyright: IPF
IPF AO000488
Accessories optical, Lens Bi-telecentric, Ø100mm 246long, F8, C-mount (1-32 UN 2A), Aluminum+Glass, Up to 2 megapixel, Depth of focus 35mm
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
A lens is a gathering, optical system that generates a real optical image of an object. The correct choice of a suitable lens, which is ideal for the respective application in combination with the camera sensor, plays an important role. The figure of the image circle or image field is projected through the lens to the image sensor that converts it into electrical signals.
Technical parameters
| Housing material: | Aluminum |
| Lens connection: | C-mount (1-32 UN 2A) |
| Lens diameter: | 100 |
| Material of optical surface: | Glass |
| Image circle diameter: | 11mm |
| Lens length: | 245.5mm |
| Type of accessory: | Lens |
| Distortion: | 0.07% |
| Aperture control: | Manual |
| Motor zoom: | no |
| Magnification: | 0.138 |
| Telecentricity: | 0.08° |
| Lens type: | Bi-telecentric |
| Focusable: | no |
| Aperture number: | 8 |
| Operating distance: | 181.8mm |
| Depth of focus: | 35mm |
| Resolution capacity: | Up to 2 megapixel |
| eClass 7.0: | 27279205 |
| eClass 7.1: | 27279205 |
| eClass 8.0: | 27279205 |
| eClass 9.0: | 27310203 |
| eClass 9.1: | 27273603 |
| ETIM-6.0: | EC001776 |
| ETIM-7.0: | EC001776 |
| IPF Product Group: | 914 |
| shipping weight: | 1.44kg |
| packaging dimensions: | 155.0mm x 155.0mm x 315.0mm |
| customs tariff number: | 90021100 |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
