Product
IPF
AO000404
Request a Quote
Image copyright: IPF

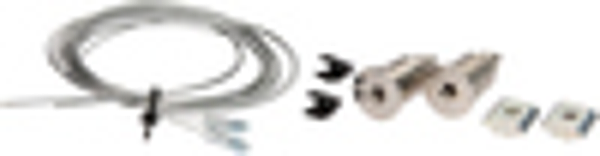

IPF AO000404
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Width: | 64mm |
| Design: | Cuboid |
| Housing material: | Aluminum |
| Degree of protection (IP): | IP50 |
| Height: | 80mm |
| Length: | 1004mm |
| Ambient temperature: | -20 - 40°C |
| Front screen material: | Borosilicate glass |
| Lamp power: | 40W |
| Dimmable: | yes |
| Voltage type: | AC |
| Nominal supply voltage: | 90 - 264V |
| Reverse polarity protection: | yes |
| Luminous flux: | 3168lm |
| On/Off switch: | yes |
| Type of electrical connection: | Cable with connector |
| Rated operation current: | 180.00mA |
| Risk groups: | 1 |
| Color temperature: | 4500K |
| Light source: | Neutral white |
| Illuminance at 500mm distance: | 2800lx |
| Radiation angle: | 100° |
| Illumination in the center (distance 1 m): | 700lx |
| Light version: | Workplace light |
| eClass 7.0: | 27119010 |
| eClass 7.1: | 27119010 |
| eClass 8.0: | 27119010 |
| eClass 9.0: | 27110345 |
| eClass 9.1: | 27110345 |
| ETIM-7.0: | EC000348 |
| IPF Product Group: | 190 |
| shipping weight: | 4.99kg |
| packaging dimensions: | 110mm x 110mm x 1200mm |
| customs tariff number: | 94054099 |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
