Product
IPF
AO000324
Request a Quote
Image copyright: IPF

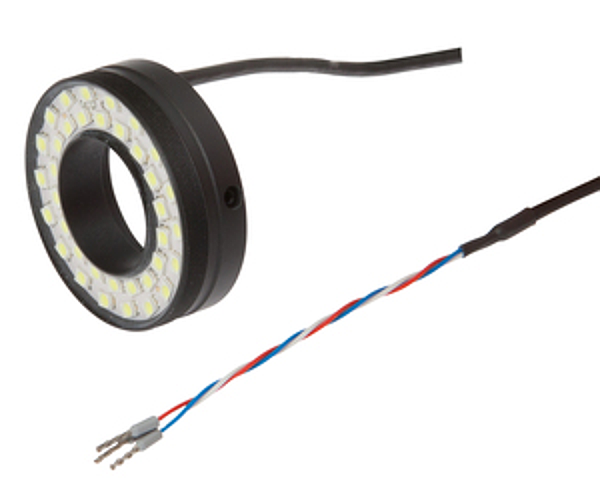

IPF AO000324
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Height: | 12.4mm |
| Design: | Round |
| Number of cores: | 3 |
| Degree of protection (IP): | IP67 |
| Diameter: | 40mm |
| Housing material: | Aluminum |
| Ambient temperature: | 0 - 40°C |
| Protection class: | III |
| Voltage type: | DC |
| Nominal supply voltage: | 12 - 30V |
| Lamp power: | 2.3W |
| Type of electrical connection: | Cable |
| Rated operation current: | 96.00mA |
| Light source: | White light |
| Light version: | Ring lights |
| eClass 7.0: | 27310204 |
| eClass 7.1: | 27310204 |
| eClass 8.0: | 27310204 |
| eClass 9.0: | 27310204 |
| eClass 9.1: | 27310204 |
| ETIM-7.0: | EC000348 |
| IPF Product Group: | 915 |
| shipping weight: | 0.03kg |
| packaging dimensions: | 99.0mm x 60mm x 160mm |
| customs tariff number: | 94054099 |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
