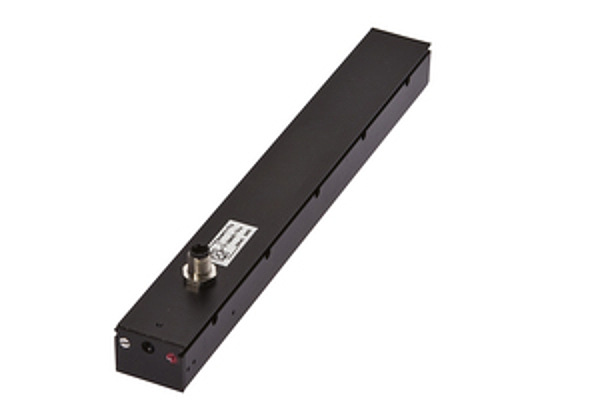

AO000319
Width: | 14mm |
Design: | Rod |
Ambient temperature: | -10 - 45°C |
Front screen material: | Plastic |
Height: | 100mm |
Housing material: | Aluminum |
Degree of protection (IP): | IP50 |
Protection class: | III |
Voltage type: | DC |
Nominal supply voltage: | 10 - 30V |
Lamp power: | 3.6W |
Type of electrical connection: | M5-connector |
Rated operation current: | 150.00mA |
Light source: | Infrared light |
Light version: | Line lights |
eClass 7.0: | 27310204 |
eClass 7.1: | 27310204 |
eClass 8.0: | 27310204 |
eClass 9.0: | 27310204 |
eClass 9.1: | 27310204 |
ETIM-7.0: | EC000348 |
IPF Product Group: | 915 |
shipping weight: | 0.06kg |
packaging dimensions: | 77.0mm x 25.0mm x 123.0mm |
customs tariff number: | 94054099 |
ECCN: | |
Country of Origin: | |
EAN: | |
Weight: | 0.00 kg |
Length: | 0.00 m |
Width: | 0.00 m |
Height: | 0.00 m |
