IPF
AO000289
Request a Quote
Image copyright: IPF
IPF AO000289

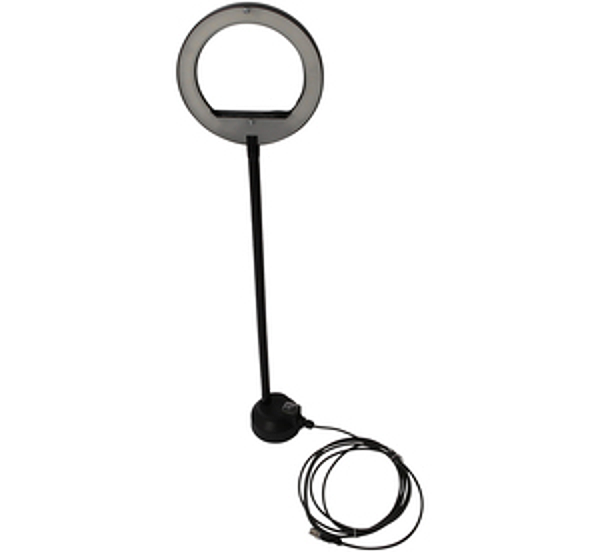

LED Gooseneck light, Ø171mm 720long, Cold white, 8W, 120°, 1200lx, 5500K, 22-26V DC, Plug-in connection, IP50, Aluminum+Hard glass, Adhesive magnet, On/Off switch
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
LED lights are required in nearly every industrial sector. A lighting coordinated on the respective workplace ensures a better visibility, increases the production quality, the working safety and helps additionally to safe energy costs. Their long lifetime, which is independent of switching cycles, reduces maintenance costs and increases the availability. LED lights are used for the illumination of workplaces, work areas of machines, control cabinets and several other fields of application.
Technical parameters
| Type of lamp stand: | Adhesive magnet |
| Design: | Gooseneck |
| Housing material: | Aluminum |
| Degree of protection (IP): | IP50 |
| Diameter: | 171mm |
| Length: | 720mm |
| Ambient temperature: | -10 - 40°C |
| Front screen material: | Hard glass |
| Lamp power: | 8W |
| Voltage type: | DC |
| Nominal supply voltage: | 21.6 - 26.4V |
| Reverse polarity protection: | yes |
| On/Off switch: | yes |
| Type of electrical connection: | Plug-in connection |
| Rated operation current: | 300.00mA |
| Average nominal service life: | 50h |
| Risk groups: | 0 |
| Color temperature: | 5500K |
| Light source: | Cold white |
| Illumination in the center (distance 1 m): | 300lx |
| Light version: | Gooseneck light |
| Radiation angle: | 120° |
| Number of LEDs: | 24 |
| Illuminance at 500mm distance: | 1200lx |
| eClass 7.0: | 27119010 |
| eClass 7.1: | 27119010 |
| eClass 8.0: | 27119010 |
| eClass 9.0: | 27110345 |
| eClass 9.1: | 27110345 |
| ETIM-7.0: | EC000348 |
| IPF Product Group: | 190 |
| shipping weight: | 2.25kg |
| packaging dimensions: | 210mm x 95.0mm x 1125.0mm |
| customs tariff number: | 94054099 |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
