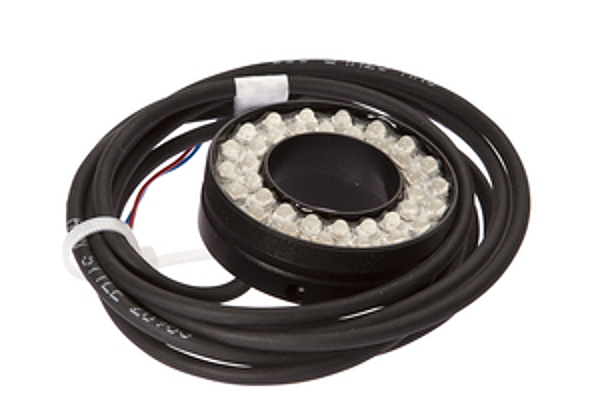

AO000191
Height: | 12.4mm |
Design: | Round |
Number of cores: | 3 |
Degree of protection (IP): | IP67 |
Diameter: | 40mm |
Housing material: | Aluminum |
Ambient temperature: | 0 - 40°C |
Protection class: | III |
Voltage type: | DC |
Nominal supply voltage: | 10 - 30V |
Lamp power: | 2.1W |
Type of electrical connection: | Cable |
Rated operation current: | 88.00mA |
Light source: | Polarity free red light |
Light version: | Ring lights |
Wavelength of the lamp: | 630nm |
eClass 7.0: | 27310204 |
eClass 7.1: | 27310204 |
eClass 8.0: | 27310204 |
eClass 9.0: | 27310204 |
eClass 9.1: | 27310204 |
ETIM-7.0: | EC000348 |
IPF Product Group: | 915 |
shipping weight: | 0.1kg |
packaging dimensions: | 99.0mm x 60mm x 160mm |
customs tariff number: | 94054099 |
ECCN: | |
Country of Origin: | |
EAN: | |
Weight: | 0.00 kg |
Length: | 0.00 m |
Width: | 0.00 m |
Height: | 0.00 m |
