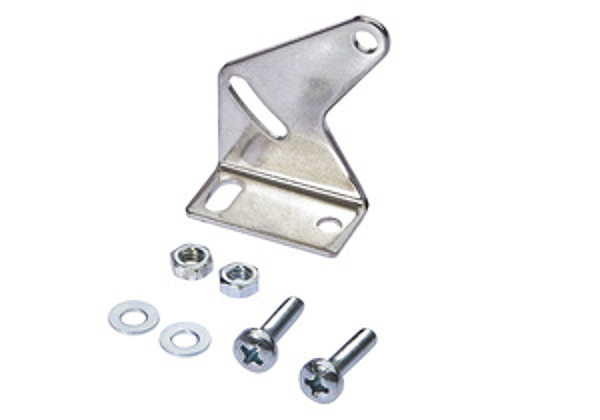

Article image AO000045

IPF AO000045

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

Technical parameters

Width: 42mm
Height: 16.5mm
Length: 15mm
Mounting type: Screwing
Number of boreholes: 2
Diameter/width of the fastening holes for sensor: 4.2mm
Version: Mounting bracket
Surface: Galvanized
Material: Steel
Angle: 90°
Number of oblong holes: 2
Diameter/width of the fastening holes for sensor: 4.2mm
Scope of delivery: Mounting material for sensor, brackets
eClass 7.0: 27279202
eClass 7.1: 27279202
eClass 8.0: 27279202
eClass 9.0: 27273701
eClass 9.1: 27273701
ETIM-6.0: EC002625
ETIM-7.0: EC002625
IPF Product Group: 900
shipping weight: 0.02kg
packaging dimensions: 70mm x 17.0mm x 120mm
customs tariff number: 73269098

Logistic parameters

ECCN:
Country of Origin:
EAN:
Weight: 0.00 kg
Length: 0.00 m
Width: 0.00 m
Height: 0.00 m
