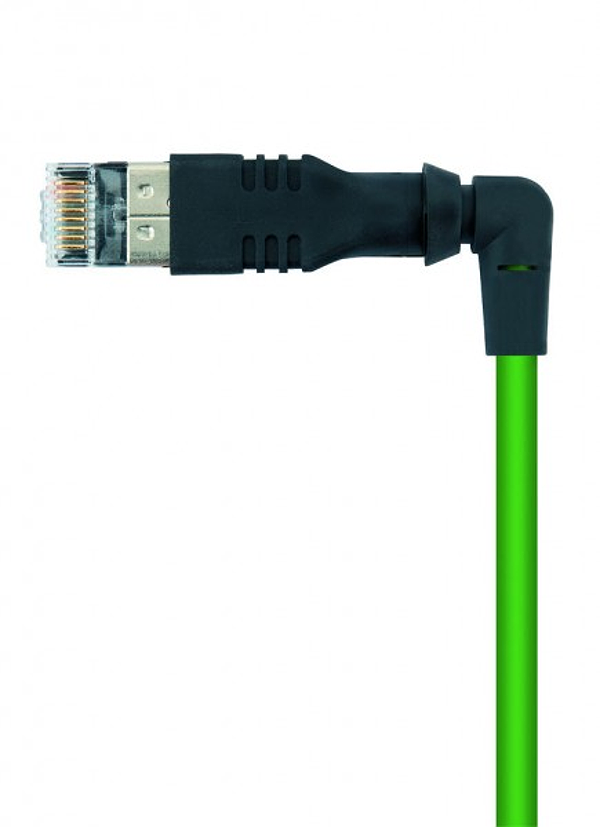

Escha 8080684
IE-W9RJ45SS8.005-2/S3400
RJ45 male, angled, Industrial Ethernet, 100 MBit/s, 4 poles, shielded
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Shielded PUR Ethernet-cable for industrial applications. Fits to real-time requirements according to IEC61158. The cable meets the UL-Style20963 (80°/30V)- and the Cat5 (electrical properties according to EN50288-2-2) requirements. Materials and a constructive setup for increased mechanical stresses (abrasion, bending, vibrations etc.) of the cable. Drag-chain/torsion operations are possible. High tensile strength through incorporated Kevlar-strands.
Downloads
Technical parameters
| Transmission features: | Cat5e |
| Material: | PUR |
| Jacket color: | GN, similar RAL6018 |
| Pin assignment: | 1 WHOG, 2 OG, 3 WHBU, 6 BU |
| Wire insulation material: | PP |
| Wire colors: | WHBU/BU, WHOG/OG |
| Conductor structure: | 19 x 0.10 mm |
| Ambient temperature product: | -40°C...+70°C |
| Temperature range (fixed): | -40°C...+80°C |
| Grip body material: | Plastic, TPE, BK |
| Rated voltage cable: | 30 V UL rating |
| Material of shielding housing: | Metal, CuZn, nickel-plated |
| Standards: | IEC 60603-7-5 |
| Degree of protection (mounted): | IP20 |
| Mechanical life-cycle: | >750 mating cycles |
| Cable end assembly: | open cable end |
| Degree of pollution: | 1 |
| Shielding: | with shielding |
Logistic parameters
| ECCN: | |
| Country of Origin: | Deutschland |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
