Escha 8076249

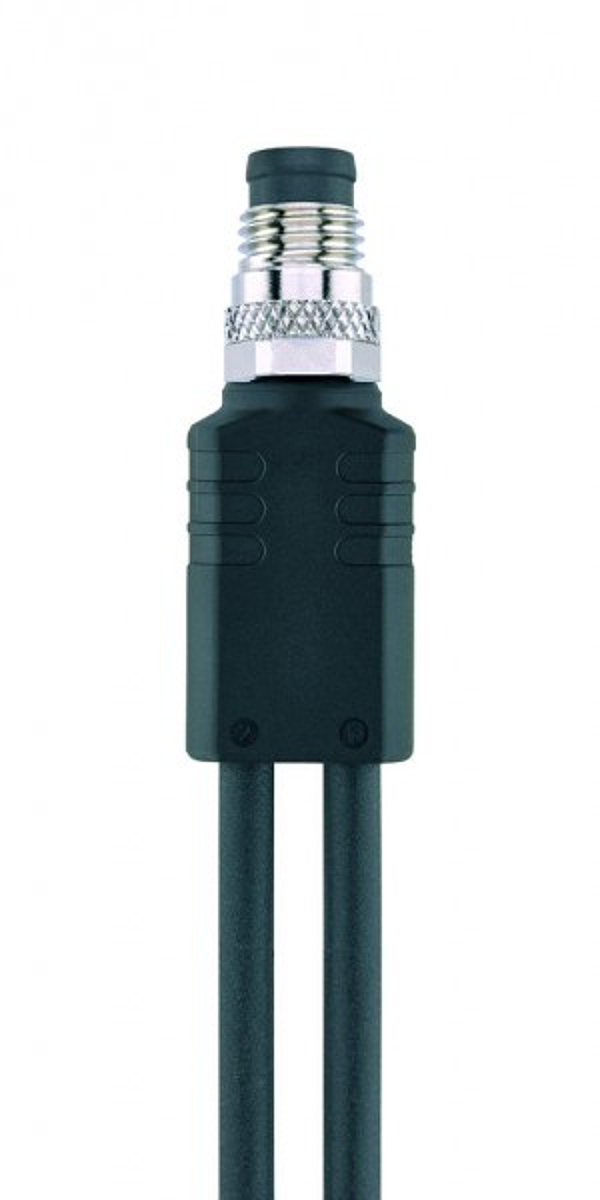

Y-splitter, M8 male, 4 poles, with cable outlet, M12 female, angled, 3 poles

17.29 €


Item condition: New, factory packaged
Expected lead time: 4-5 weeks
Packaging unit: 10 pc
Minimum order: 10 pc
Warranty: 12 months


Flexible, silicone- and halogen-free control line with high mechanical strength. The cable is chemicals, hydrolysis-, and microbes- resistant. The drag-chain application is possible at a bending radius of minimum 10 x d. Due to its weld-field immunity, the cable is very well suited for the flexible application in robotics, machine-tool, and metal-cutting production. The cables meet the UL and CSA (UL10493/20549; cULus) requirements.


Technical parameters

Outer diameter of jacket: 4,00 mm
Material: PUR
Jacket color: BK, similar RAL9005
Coupling nut material: Metal, CuZn, nickel-plated
Rated voltage: 60V
Wire colors: BN, BU, BK
Number of pins: 4
Current load (at 40°C): 4
Temperature range (fixed): -50°C...+90°C
Standards: IEC 61076-2-101/-104
Halogen-free: Yes
Ambient temperature product: -30°C...+90°C
Grip body material: Plastic, TPU, BK
Special features: flame retardant, seawater resistant, recyclable, LABS free, RoHs compliant, acid- and alkali resistant, ozone resistant, UV resistant, hydrolysis proof, drag chain-adapted, torsion resistant, welding sparks resistant, halogen free, silicone free, oil resistant
Degree of pollution: 3

Logistic parameters

Country of Origin: Deutschland
Weight: 0.00 kg
Length: 0.00 m
Width: 0.00 m
Height: 0.00 m
