Product
Escha
8076238
YK-FS4M8-2AL-WAK4-1/1/P00
Request a Quote
Image copyright: Escha

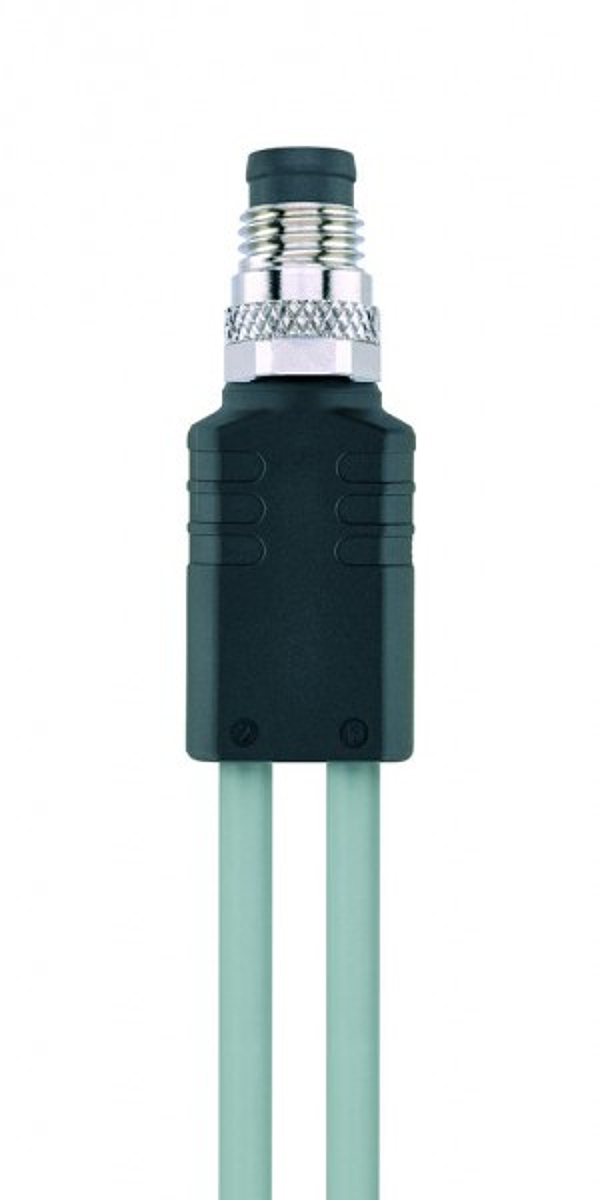

Escha 8076238
YK-FS4M8-2AL-WAK4-1/1/P00
Y-splitter, M8 male, 4 poles, with cable outlet, M12 female, straight, 4 poles
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
PVC-cable for measurement and control-, and sensor technology. Suitable for applications in dry areas on packaging machines, assembly- and conveyor technology. High flexibility with unstressed movement (conditional drag-chain application possible). Predestined for applications in food- and beverage industry.
Downloads
Technical parameters
| Outer diameter of jacket: | 4,20 mm |
| Contact material: | Metal, CuZn, gold-plated |
| Contact-carrier material: | Plastic, TPU, BK |
| Coupling nut material: | Metal, CuZn, nickel-plated |
| Rated voltage: | 60V |
| Coding: | A |
| Number of pins: | 4 |
| Bending radius (fixed): | 5 x Ø-cable |
| Degree of protection (mounted): | IP65, IP67, IP68 |
| Standards: | IEC 61076-2-101/-104 |
| Insulation resistance (Ω): | ≥10 8 |
| Special features: | seawater resistant, recyclable, LABS free, RoHs compliant, acid- and alkali resistant, ozone resistant, UV resistant |
| Grip body material: | Plastic, TPU, BK |
| Mechanical life-cycle: | >100 mating cycles |
| Degree of pollution: | 3 |
Logistic parameters
| ECCN: | |
| Country of Origin: | Deutschland |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
