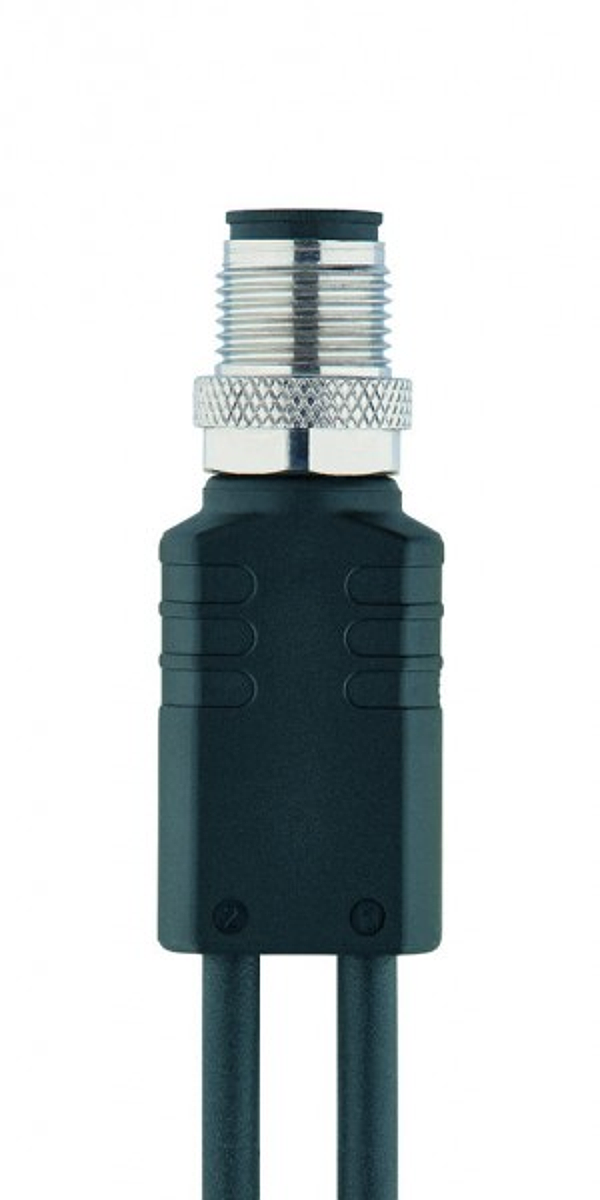

Article image 8076101

Escha 8076101

YK-FS4M12-2AL-SKP3-0,3/0,3/S370

Y-splitter, M12 male, 4 poles, with cable outlet, M8 female, straight, 3 poles

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

Flexible, silicone- and halogen-free control line with high mechanical strength. The cable is chemicals, hydrolysis-, and microbes- resistant. The drag-chain application is possible at a bending radius of minimum 10 x d. Due to its weld-field immunity, the cable is very well suited for the flexible application in robotics, machine-tool, and metal-cutting production. The cables meet the UL and CSA (UL10493/20549; cULus) requirements.

Downloads

Technical parameters

Outer diameter of jacket: 4,00 mm
Contact material: Metal, CuZn, gold-plated
Contact-carrier material: Plastic, TPU, BK
Coupling nut material: Metal, CuZn, nickel-plated
Wire insulation material: PP
Wire colors: BN, BU, BK
Number of pins: 4
Bending radius (fixed): 5 x Ø-cable
Temperature range (fixed): -50°C...+90°C
Standards: IEC 61076-2-101/-104
Insulation resistance (Ω): ≥10 8
Torsion: +/-360°/m, ≥ 2 Mio. cycles
Grip body material: Plastic, TPU, BK
Special features: flame retardant, seawater resistant, recyclable, LABS free, RoHs compliant, acid- and alkali resistant, ozone resistant, UV resistant, hydrolysis proof, drag chain-adapted, torsion resistant, welding sparks resistant, halogen free, silicone free, oil resistant
Degree of pollution: 3

Logistic parameters

ECCN:
Country of Origin: Deutschland
EAN:
Weight: 0.00 kg
Length: 0.00 m
Width: 0.00 m
Height: 0.00 m
