Escha 8075934

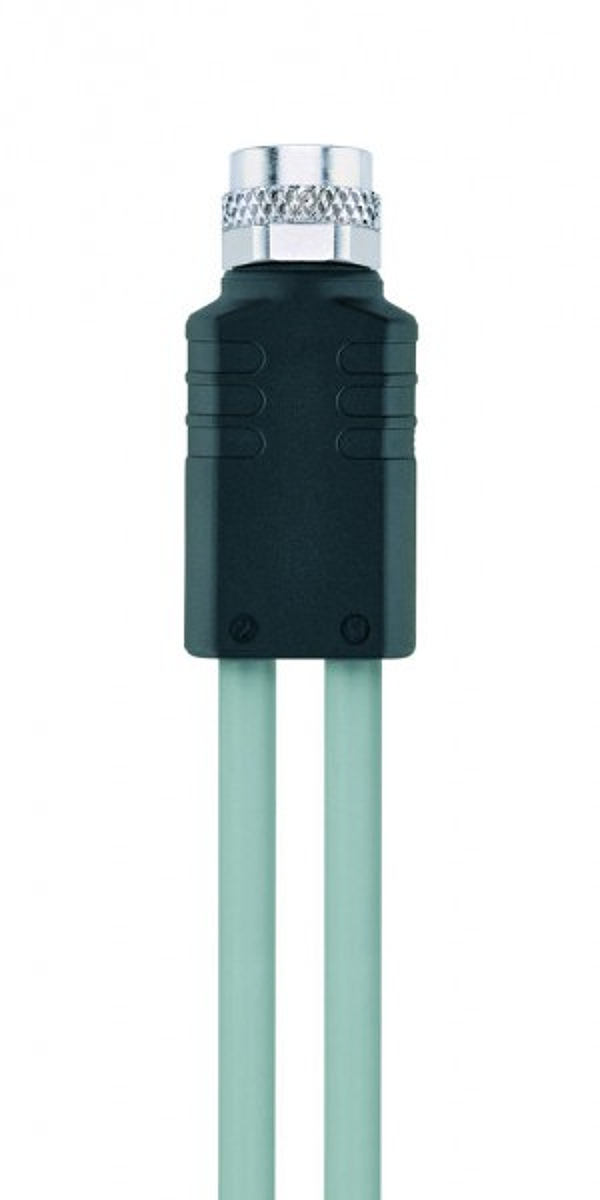

Y-splitter, M8 female, 4 poles, with cable outlet, M8 male, straight, 3 poles

On Request. Please send us an email to inquire the price and avaliability.


PVC-cable for measurement and control-, and sensor technology. Suitable for applications in dry areas on packaging machines, assembly- and conveyor technology. High flexibility with unstressed movement (conditional drag-chain application possible). Predestined for applications in food- and beverage industry.


Technical parameters

Outer diameter of jacket: 4,00 mm
Contact material: Metal, CuZn, gold-plated
Contact-carrier material: Plastic, TPU, BK
Wire cross-section: 3 x 0.25 mm²
Wire insulation material: PVC
Wire colors: BN, BU, BK
Conductor structure: 14 x 0.15 mm
Bending radius (fixed): 5 x Ø-cable
Temperature range (fixed): -25°C...+80°C
Temperature range (repeated): 0°C...+80°C
Insulation resistance (Ω): ≥10 8
Ambient temperature product: -30°C...+90°C
Grip body material: Plastic, TPU, BK
Mechanical life-cycle: >100 mating cycles
Degree of pollution: 3

Logistic parameters

Country of Origin: Deutschland
Weight: 0.00 kg
Length: 0.00 m
Width: 0.00 m
Height: 0.00 m
