Product
Escha
8063690
FB-SKPH3-2/P00
Request a Quote
Image copyright: Escha

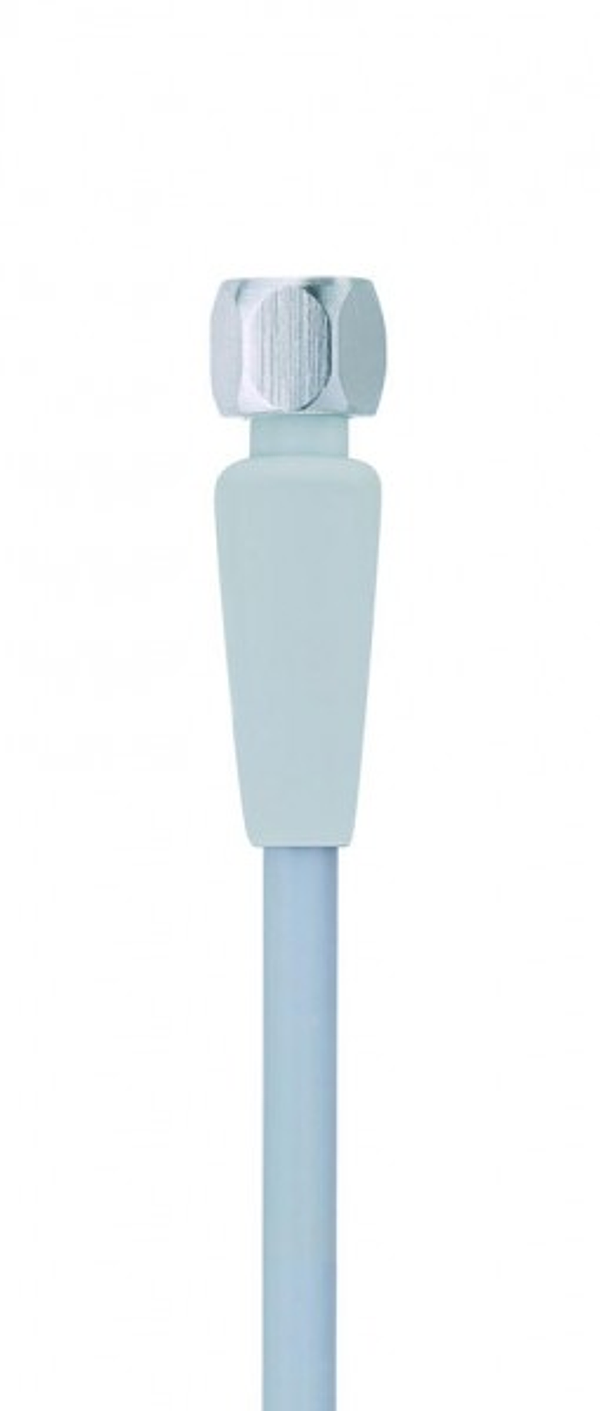

Escha 8063690
FB-SKPH3-2/P00
M8 female, straight, Food & Beverage, 3 poles
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
PVC-cable for measurement and control-, and sensor technology. Suitable for applications in dry areas on packaging machines, assembly- and conveyor technology. High flexibility with unstressed movement (conditional drag-chain application possible). Predestined for applications in food- and beverage industry.
Downloads
Technical parameters
| Outer diameter of jacket: | 4,00 mm |
| Material: | PVC |
| Jacket color: | GY, similar RAL7040 |
| Rated voltage: | 60V |
| Current load (at 40°C): | 4 |
| Wire colors: | BN, BU, BK |
| Ambient temperature product: | -40°C...+105°C |
| Bending radius (fixed): | 5 x Ø-cable |
| Grip body material: | Plastic, PP, GY |
| Contact-carrier material: | Plastic, PP, GY |
| Rated voltage cable: | ≤300 V |
| Standards: | IEC 61076-2-104 |
| Degree of protection (mounted): | IP65, IP67, IP68, IP69 |
| Mechanical life-cycle: | >100 mating cycles |
| Cable end assembly: | open cable end |
| Degree of pollution: | 3 |
Logistic parameters
| ECCN: | |
| Country of Origin: | Deutschland |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
