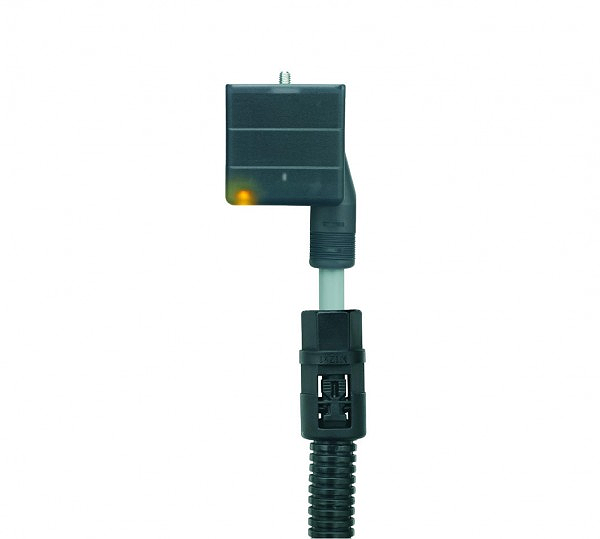

Article image 8055699

Escha 8055699

VAAG22-24.1-2/P01

Valve-connector, housing style A, straight, 2+PE bridged, sensor-/actuator cable

7.66 €

Quantity

Item condition: New, factory packaged
Expected lead time: 4-5 weeks
Packaging unit: 10 pc
Minimum order: 10 pc
Warranty: 12 months

Description

PVC-cable for measurement and control-, and sensor technology. Suitable for applications in dry areas on packaging machines, assembly- and conveyor technology. High flexibility with unstressed movement (conditional drag-chain application possible). Predestined for applications in food- and beverage industry. P01-cables meet the UL and CSA (UL1729/2464; cULus) requirements.

Downloads

Technical parameters

Outer diameter of jacket: 6,10 +/- 0,2 mm
Material: PVC
Jacket color: GY, similar RAL7040
Wire cross-section: 3 x 0.75 mm²
Number of pins: 2+PE, PE bridged
Wire colors: BN, BU, GNYE
Rated voltage: 30V AC/DC
Current load (at 40°C): 10
Insulation resistance (Ω): ≥10 8
Temperature range (repeated): 0°C...+80°C
Contact material: Metal, CuSn, silver-plated
Special features: seawater resistant, recyclable, LABS free, RoHs compliant, acid- and alkali resistant, ozone resistant, UV resistant
Contact-carrier material: Plastic, PA, BK
Standards: DIN EN 175301-803
Degree of protection (mounted): IP65, IP67, IP68
Mechanical life-cycle: >100 mating cycles
Degree of pollution: 3

Logistic parameters

ECCN:
Country of Origin: Deutschland
EAN:
Weight: 0.00 kg
Length: 0.00 m
Width: 0.00 m
Height: 0.00 m
