Product
Escha
8051671
AL-WWAK3-1-AL-WWAS3/P01
Request a Quote

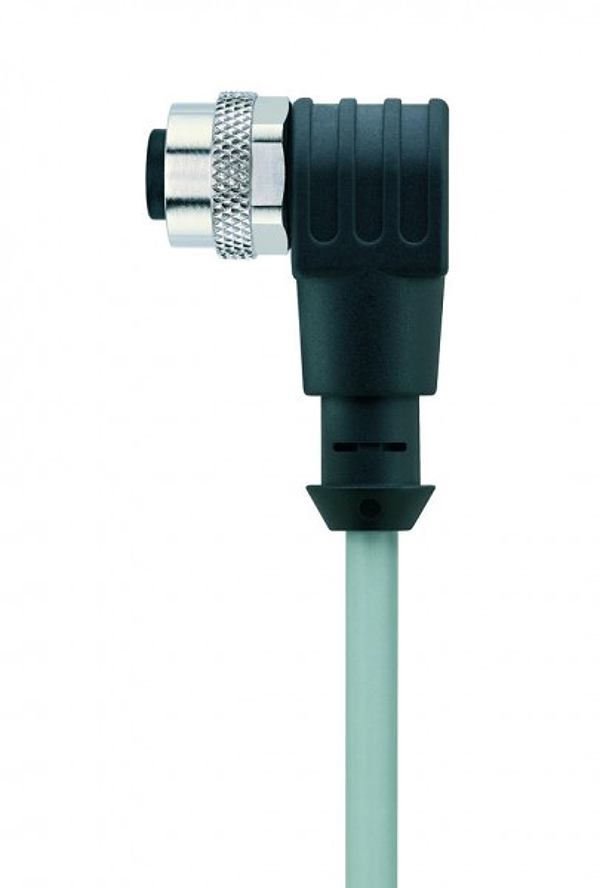

Image copyright: Escha
Escha 8051671
AL-WWAK3-1-AL-WWAS3/P01
M12 female, angled, M12 male, angled, sensor-/actuator cable, 3 poles, A-coded
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
PVC-cable for measurement and control-, and sensor technology. Suitable for applications in dry areas on packaging machines, assembly- and conveyor technology. High flexibility with unstressed movement (conditional drag-chain application possible). Predestined for applications in food- and beverage industry.
Downloads
Technical parameters
| Connector: | female, angled, M12 |
| Material: | PVC |
| Pin assignment: | 1 BN, 3 BU, 4 BK |
| Coding: | A |
| Wire insulation material: | PVC |
| Current load (at 40°C): | 4 A |
| Conductor structure: | 19 x 0.15 mm |
| Bending radius (fixed): | 5 x Ø-cable |
| Ambient temperature product: | -30°C...+90°C |
| Contact material: | Metal, CuSn, gold-plated |
| Rated voltage cable: | ≤300 V |
| Special features: | seawater resistant, recyclable, LABS free, RoHs compliant, acid- and alkali resistant, ozone resistant, UV resistant |
| Coupling nut material: | Metal, CuZn, nickel-plated |
| Sealing (female) material: | IEC 61076-2-101 |
| Standards: | IP65, IP67, IP68 |
| Degree of protection (mounted): | >100 mating cycles |
| Mechanical life-cycle: | 3 |
Logistic parameters
| ECCN: | |
| Country of Origin: | Tschechische Republik |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
