Product
Escha
8051263
AL-WAK4-5/P01
Request a Quote

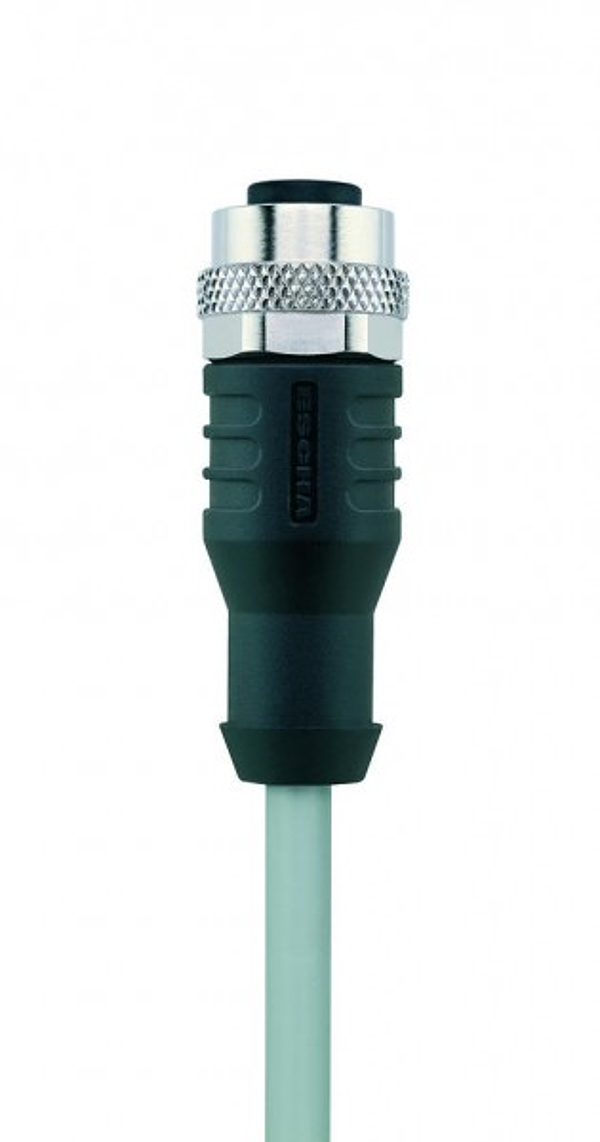

Image copyright: Escha
Escha 8051263
AL-WAK4-5/P01
M12 female, straight, sensor-/actuator cable, 4 poles, A-coded
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
PVC-cable for measurement and control-, and sensor technology. Suitable for applications in dry areas on packaging machines, assembly- and conveyor technology. High flexibility with unstressed movement (conditional drag-chain application possible). Predestined for applications in food- and beverage industry.
Downloads
Technical parameters
| Connector: | female, straight, M12 |
| Number of pins: | 4 |
| Pin assignment: | 1 BN, 2 WH, 3 BU, 4 BK |
| Wire cross-section: | 4 x 0.34 mm² |
| Wire insulation material: | PVC |
| Wire colors: | BN, WH, BU, BK |
| Current load (at 40°C): | 4 |
| Insulation resistance (Ω): | >=10 8 |
| Temperature range (fixed): | -25°C...+80°C |
| Temperature range (repeated): | 0°C...+80°C |
| Grip body material: | Plastic, TPU, BK |
| Special features: | seawater resistant, recyclable, LABS free, RoHs compliant, acid- and alkali resistant, ozone resistant, UV resistant |
| Coupling nut material: | Metal, CuZn, nickel-plated |
| Standards: | IEC 61076-2-101 |
| Degree of protection (mounted): | IP65, IP67, IP68 |
| Mechanical life-cycle: | >100 mating cycles |
| Cable end assembly: | open cable end |
| Degree of pollution: | 3 |
Logistic parameters
| ECCN: | |
| Country of Origin: | Tschechische Republik |
| EAN: | |
| Weight: | 0.19 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
