Escha 8051076

AL-WWAS4.5-10/P00

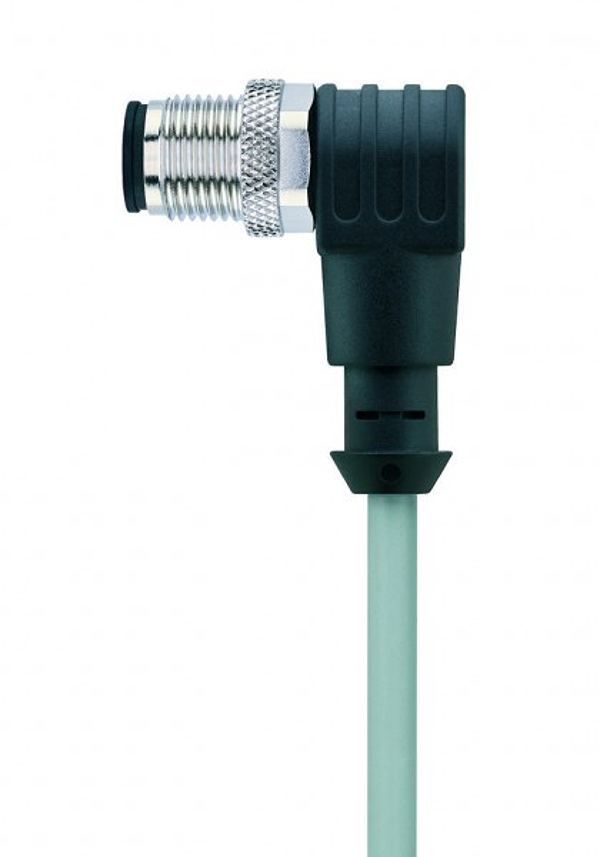

M12 male, angled, sensor-/actuator cable, 5 poles, A-coded

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

PVC-cable for measurement and control-, and sensor technology. Suitable for applications in dry areas on packaging machines, assembly- and conveyor technology. High flexibility with unstressed movement (conditional drag-chain application possible). Predestined for applications in food- and beverage industry.

Downloads

Technical parameters

Connector: male, angled, M12
Material: PVC
Pin assignment: 1 BN, 2 WH, 3 BU, 4 BK, 5 GY
Wire cross-section: 5 x 0.34 mm²
Rated voltage: 60V
Wire colors: BN, WH, BU, BK, GY
Current load (at 40°C): 4
Bending radius (fixed): 5 x Ø-cable
Temperature range (fixed): -25°C...+80°C
Contact material: Metal, CuSn, gold-plated
Rated voltage cable: ≤300 V
Contact-carrier material: Plastic, TPU, BK
Coupling nut material: Metal, CuZn, nickel-plated
Standards: IEC 61076-2-101
Degree of protection (mounted): IP65, IP67, IP68
Mechanical life-cycle: >100 mating cycles
Cable end assembly: open cable end
Degree of pollution: 3

Logistic parameters

ECCN:
Country of Origin: Tschechische Republik
EAN:
Weight: 0.00 kg
Length: 0.00 m
Width: 0.00 m
Height: 0.00 m
