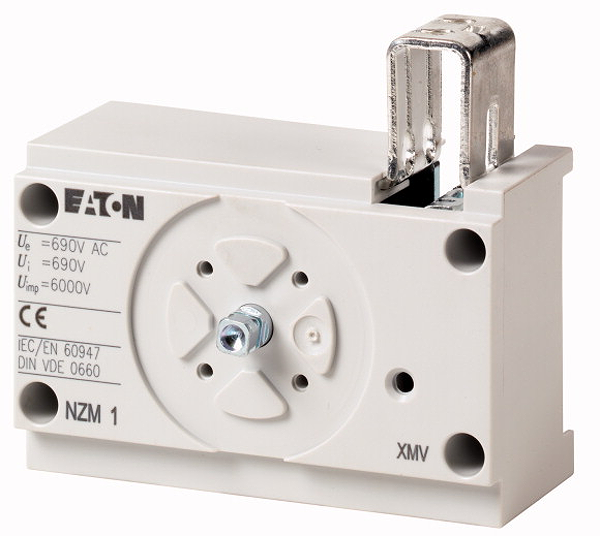

Eaton 281581

NZM1-XMV

Interlock, mechanical, size 1

Description

EL-Nummer (Norway). 4359007. Optional accessories for the circuit-breaker series NZM offers a comprehensive portfolio of application options for use world wide. The mounting is always flexible and easy thanks to the modular function groups. Notes: allows interlocking of 2, 3 or up to 4 switches, including different construction sized switches, between digital inputs.for every switch an interlocking module NZM…-XMV and a rotary handle on switch NZM…-XDV or a door coupling rotary handle NZM…-XTVD and Bowden cables are required. Cannot be combined with UL/CSA door coupling rotary handles NZM…-XTV…-NA or paralleling mechanisms, side wall operators and remote operator as well as insulating surrounds. Can be used for: NZM1(-4) , PN1(-4), N(N/O)1(-4)
