278233
DIULM50/11(110V50HZ,120V60HZ)

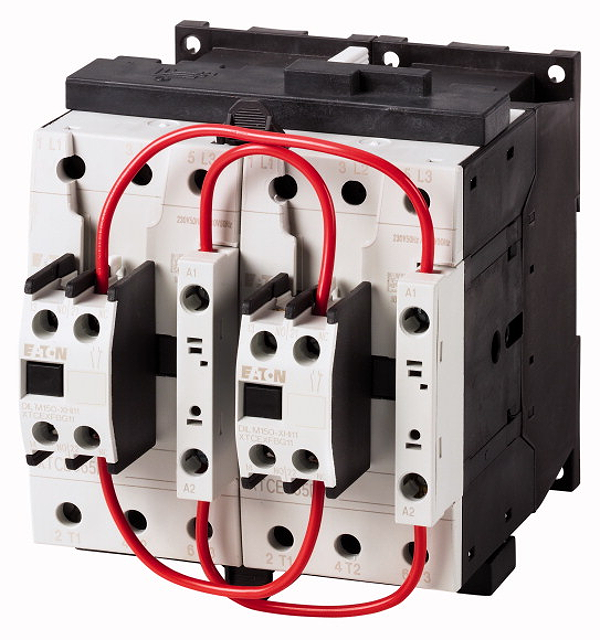

Reversing contactor combination, 380 V 400 V: 22 kW, 110 V 50 Hz, 120 V 60 Hz, AC operation
Alternate Catalog No. XTCR050D11A. Reversing contactor combination, Application: Contactor combinations for starting motors with two directions of rotation, Accessories: DIUL reversing combinations, Utilization category: NAC-3: Normal AC induction motors: starting, switch off during running, AC-4: Normal AC induction motors: starting, plugging, reversing, inching, Rated operational current AC-3 380 V 400 V: Ie= 50 A, Max. rating for three-phase motors, 50 - 60 Hz AC-3 220 V 230 V: P= 15.5 kW, 380 V 400 V: P= 22 kW, 660 V 690 V: P= 30 kW, Actuating voltage: 110 V 50 Hz, 120 V 60 Hz, Voltage AC/DC: AC operation, Notes: Also suitable for motors with efficiency class IE3., IE3-ready devices are identified by the logo on their packaging.
ECCN: | |
Country of Origin: | RO |
EAN: | |
Weight: | 1.94 kg |
Length: | 0.00 m |
Width: | 0.00 m |
Height: | 0.00 m |
