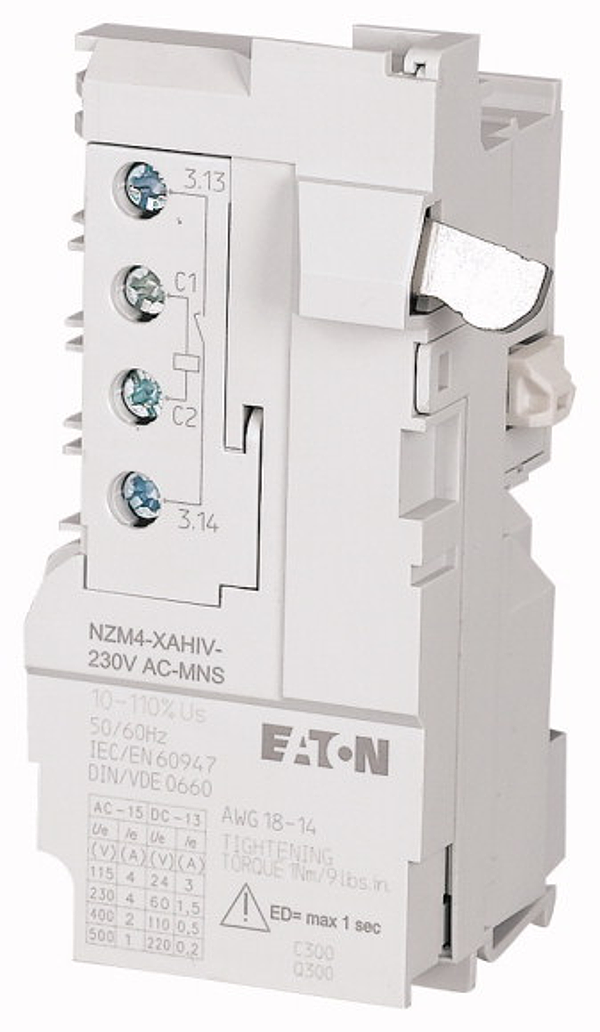

Eaton 274143

NZM4-XAHIV-230AC-MNS

Shunt release, 230VAC, +1early N/O, for mesh network, size 4

Description

Optional accessories for the circuit-breaker series NZM offers a comprehensive portfolio of application options for use world wide. The mounting is always flexible and easy thanks to the modular function groups. Notes: for mesh network circuit-breaker. Maximum on time = 1s operating range 10-110 % Us. Not UL/CSA approved. Rated control voltage 230VAC. Cannot be installed simultaneously with NZM...-XHIV.. early-make auxiliary contact or NZM...-XU.. undervoltage release. intermittent operation guaranteed by series connection of an M22-(C)K10 make contact. The maximum operating time of the shunt release for mesh network circuit-breaker is 1s. Early make of auxiliary contact on switching on (manual operation): approx. 90ms. Can be used for: NZM4(-4), N(N/O)4(-4)
