266773
NZM2-XIPK

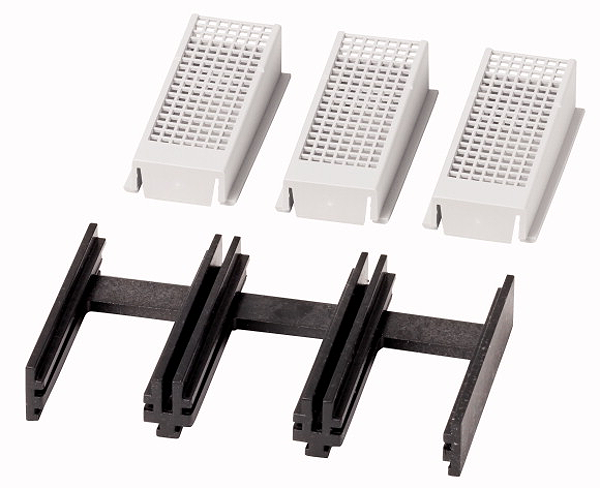

Protection against contact with a finger, IP2X, 3p, size 2
EL-Nummer (Norway). 0004358887. Optional accessories for the circuit-breaker series NZM offers a comprehensive portfolio of application options for use world wide. The mounting is always flexible and easy thanks to the modular function groups. Notes: part no. contains parts for a terminal located at top or bottom for 3 or 4 pole switches. Enhancement of the busbar tag shroud to IP2X. Protection when reaching into the cable connection area with the connection of cables in the box terminal. if there are 2 conductors, the maximum cross-sectional area is 25mm 2 or AWG4. Cannot be combined with NZM-XSTK control circuit terminal. Can be used for: NZM2, PN2, N(S)2
ECCN: | |
Country of Origin: | HU |
EAN: | |
Weight: | 0.08 kg |
Length: | 0.00 m |
Width: | 0.00 m |
Height: | 0.00 m |
