Eaton 260142

NZM1-XDTVR

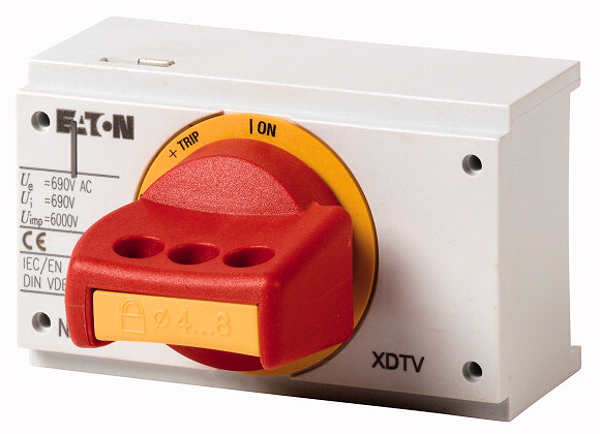

Rotary handle, red-yellow, lockable on the handle, size 1

Description

Optional accessories for circuit-breaker series NZM offers a comprehensive portfolio of application possibilities for worldwide use. Modular functional groups make mounting flexible and simple. Note: complete with rotary drive and insulating surround. Red/yellow for EMERGENCY-SHUTDOWN. Lockable on the 0 position on the handle using up to 3 padlocks. Also available with door interlock e.g. for MCC service distribution. Door interlock in ON position, can be defeated from the outside using a 1 mm pin. Not defeated in the locked OFF and ON positions. Door can be opened in OFF, can only be switched ON when the door is closed. Can be used for: NZM1(-4), PN1(-4), N(N/O)1(-4)
